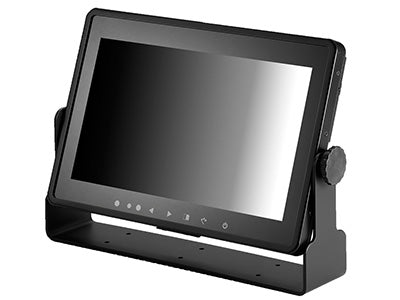

XENARC 1029GNH 10.1" IP67 Sunlight Readable Optical Bonded Capacitive Touchscreen LED LCD Monitor
The 1029GNH, built from the chassis of the extremely popular 1029CNH IP65 dust/splash proof display, brings ruggedization to another level. Not only is this 10.1†monitor IP67 dust and water proof, it is also optically bonded for better viewing clarity, as well as resistance to any environmental humidity that could cause fogging or condensation in certain situations. The cabling and connectors are also water tight, giving this monitor further durability and versatility in any environmental situation. This unit is available without Optical Bonding and with an IP65 rating in the 1029CNH.
The 1029GNH offers all of the innovation and inputs as our 1020 series models along with a capacitive touchscreen panel. Capacitive sensing provides a more responsive touch interface than resistive touch. It achieves this by using the capacitance of human skin to detect the proximity or position of the input. Proximity sensing allows the touch interaction to work even if protective glass or coating is used over the display. The touch panel is optically bonded to the LCD panel, eliminating the air gap between the two, increasing clarity, contrast, and durability. Further, because the unit is water tight and air tight, ambient humidity will not affect the clarity or viewability because of the optical bonding.
Why do our products outlast others in extreme conditions? Why do our products have a wider temperature range and a wider voltage input range? It is because our mission is to offer our customers the best products for any situation. By utilizing high grade components, this display is perfect for industrial, in-car computing applications or any other applications where a small, durable, environmentally rugged display is required, including but not limited to:
Transportation - Marine, Air, Heavy Vehicles, Mining, Weigh Stations, Fleet Management, Telematics, In-Car Computing, Public Transit, Cargo
System Integration - Machinery Controls, Factory Automation, Environmental Monitoring, Home Automation, Military, Smart Home
Point of Sale - Hospitality, Digital Signage, Self-Service Kiosks, Outdoor Kiosks and Signage, Casino
Data Monitoring - Cloud, IoT, Medical, Logistics, Inventory Management, Oil & Gas/Utilities, Law Enforcement, Broadcasting, Veterinary, First Person View
FEATURES IP67 / NEMA6P Rated Water and Dust Resistance
1,000NIT Sunlight Readable with Long Life LED Backlight
Automatic Backlight Adjustment through Built-in Ambient Light Sensor
Projected Capacitive Multi-Touch Touchscreen (USB)
Anti-Reflective and Anti-Fingerprint Coating
Plug-N-Play with Windows 7 and up and Android devices (Downloadable drivers for other OS)
Multi-Monitor Touchscreen Support
HDMI Input x 1 (HDCP), VGA Input (15 pin D-SUB) x 1 & Video Input x 2
DVI Input through included DVI to HDMI Adaptor
Audio Input x 3 / Built-In Waterproof Speaker
1024x600 Native Resolution, 16x9 Aspect Ratio
Solid Capacitors for Improved Durability
High Performance Image and Video Signal Processor
AISS - Advanced Image-Scaling and Shaping
Last Input and Power Setting Memory
IR Remote Control
Auto Power-On upon signal detection
Mirror and Vertical Image Flip
Function to Disable Front Button(s) and On Screen Text
AV2 Auto Switching for Backup Camera
360° Copper Monitor Stand or U-Shape Mount
VESA 75mm Mounting Holes
26-Pin Heavy-Duty Connector with Connector Locking
Ruggedized Aluminum Casing
Supports 9V DC ~ 36V DC
"E" Mark Certified for Automotive use
FCC, CE, E13 Certification
ROHS Compliant
24 Month Warranty
30 Day No dead Pixel Guarantee
WHAT'S IN THE BOX Copper Monitor Stand or U-Shape Mount or Panel Mount Bracket
AC Adaptor or Cigarette Lighter Car Adaptor or 5M Power Lead
1.8 Meter Cable or 5 Meter Cable or 2 Feet Cable with only HDMI & USB,or 2 Feet Cable with only VGA & USB
SPECIFICATIONS Screen Size: Diagonal 10.1" (16:9)
Physical Resolution: 1024 (H) x 600 (V) WXGA
Supported Resolution: 640 x 480 ~ 1920 x 1080
Dot Resolution: 3072 x 600 = 1,843,200 (dots)
Brightness: 1000 cd/m²
Contrast Ratio: 600:1
Viewing Angle: 140° Horizontal, 120° Vertical
Response Time (Tr/Tf): 5/20ms (Typ.)
Touch Screen Interface: USB port
Operating Voltage Range: DC 9V ~ 36V
Power Supply: DC 12V
Power Consumption: ≤ 20W
Operating Temperature: -4°F ~ 158°F (-20°C ~ 70°C)
Storage Temperature: -22°F ~ 176°F (-30°C ~ 80°C)
Dimension (mm): 265.7W x 178.2H x 32.2D
Weight (lb): 3.64
