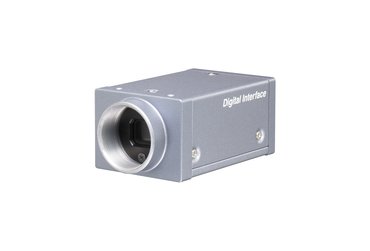

Sony continues to be on the cutting edge of camera technology with the latest addition to its industrial camera line up - The XCG GigE Series. The XCG-U100E incorporates the GigE Vision interface which is specifically standardized for machine vision applications based on Gigabit Ethernet Technology. The GigE interface enables the camera to transfer a large amount of data over long distances. The use of an Ethernet cable and availability of a wide variety of peripheral devices contribute to significant cost-cutting benefits when designing a complete vision system. Moreover, by incorporating a packet re-send mechanism, the XCG-U100E can securely transmit data to the host computer. The C-mounted camera measures 44 x 33 c 67.5mm, delivers a resolution depth of up to 12 bits per pixel with a shutter speed of 2 to 1/100,000 and enables 0-18dB of gain control with 0-6dB of digital gain.
XCG-U100E HIGHLIGHTS:
Sony 1/1.8-type progressive scan IT CCD GigE Vision Compliant (Ver 1.0) Up to 15 fps Variety of Trigger Modes Power on LED settings XML File (GenICam Compatible) Two connectors: RJ-45 (locking -20mm pitch) EIAJ -12 pin (power, trigger-in, strobe-out, isolated digital I/O) Compact and Lightweight High Shock and Vibration Resistance
XCGU100E FEATURES:
GigE Vision Compliance
The XCG-U100E camera is GigE Vision Compliant, which enables the camera to transfer a large amount of data over long distances. The use of an Ethernet cable and availability of a wide variety of peripheral devices contribute to significant cost-cutting benefits when designing a complete vision system. Variety of Trigger Modes
The XCG-U100E camera offers a wide variety of trigger modes, including Pulse-edge detection mode, Pulse-width detection mode, and Special Trigger Mode. In addition, advanced Bulk Trigger Mode allows the XCG-U100E to capture up to 16 images in rapid succession using a single software or hardware trigger. Sequential trigger mode periodically sends a software or hardware trigger to the XCG-U100E to capture the successive images. Excellent Picture Quality/High Frame Rates
The XCG-U100E is ideal for applications that require the capture of ultra-high image detail (up to 15 fps) Progressive Scan Monochrome CCD
The XCG-U100E incorporates a 1/1.8-type High Speed Progressive Scan IT CCD, providing resolution of 1600 x 1200 UXGA. High Shock and Vibration Resistance
The new XCG-U100E is a robust camera with high shock and vibration resistance which allows for delivery of outstanding performance in the most challenging environmental conditions. Sony Image Filter Dedicated Driver
The XCG-U100E features a Sony-provided, dedicated image filter driver, which enable jumbo-packet data transfer across all industry standard hardware. It is also capable of non-GigE Vision data transfer in GigE Vision environments. Image Buffer
The XCG-U100E is equipped with an image buffer, which serves as temporary storage for captured images for later transmission or retransmission. This function allows users to maximize bandwidth in multiple-camera operations or reconfirm specific images as required. Vertical and Horizontal Partial Scanning
By selecting a particular area of image to be scanned, users of the XCG-U100E can reduce data size and increase frame rate to minimize processing time. Other Features
1. Two connectors: RJ-45 (locking -20mm pitch); EAIJ-12 pin (power, trigger-in, strobe-out, isolated digital I/O) 2. Power on LED 3. Low Power Consumption (3.1 W) 4. Compact and Lightweight (44 x 33 x 67.5 mm / 145 g) 5. Shutter Speed: 2 to 1/100,000 s
XCG-U100E SPECIFICATIONS:
CAMERA
Binning: Vertical (1 x 2) Cell Size: 4.4 x 4.4 ìm Effective Pixels: 1600 x 1200 Frame Rate: 15 fps Gain: Manual 0 to +18 dB, Auto Gain Image Device: 1/1.8-type Progressive Scan IT CCD Image Device Value: Monochrome Lens Mount: C-mount Output Image Size: 1600 x 1200 pixels Partial Scan: Vertical/Horizontal Resolution: UXGA (1600 x 1200) Sensitivity: F5.6 at 400 lx (0 dB) Trigger Shutter: 2 to 1/10,000 s
XCGU100E GENERAL
Dimensions (W x H x D): 44 x 33 x 67.5 mm (1 3/4 x 1 5/16 x 2 3/4 inches) Operating Humidity: 20 to 80% (no condensation) Operating Temperature: -5° to 45° C (21 to 113°F) Power Consumption: 3.1 W Power Requirements: DC 10.5 to 15.0V Shock Resistance: 70 G Storage Humidity: 20 to 95% (no condensation) Storage Temperature: -30° to 60° C (-22° to 140°F) Vibration Resistance: 10G (20Hz to 200Hz)
VIDEO OUTPUT
Minimum Illumination: Less than 1 lx (Gain + 18dB F1.4)
