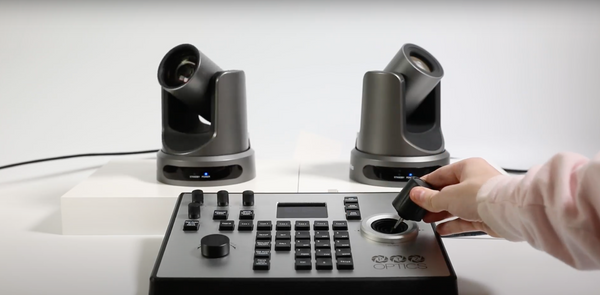

Introducing the PTZOptics 4th Generation IP Joystick Controller. Compatible with most PTZ cameras operating serial or IP protocol, including Sony, the PT-JOY-G4 is a legacy-friendly controller designed to easily integrate into a wide array of existing production systems, and even allows users to switch between protocols with the touch of a button.
A newly added web user interface will decrease your set up time, allowing you to get multiple cameras up and running in as little as five minutes! If you’re using the PT-JOY-G4 for different productions or sets, we’ve got you covered. Import and export settings for specific use cases or production environments.
For network setup, the PT-JOY-G4 will dynamically obtain an IP address upon connection to your LAN. If your network is not able to supply DHCP addresses, you can assign a static IP address to the controller.

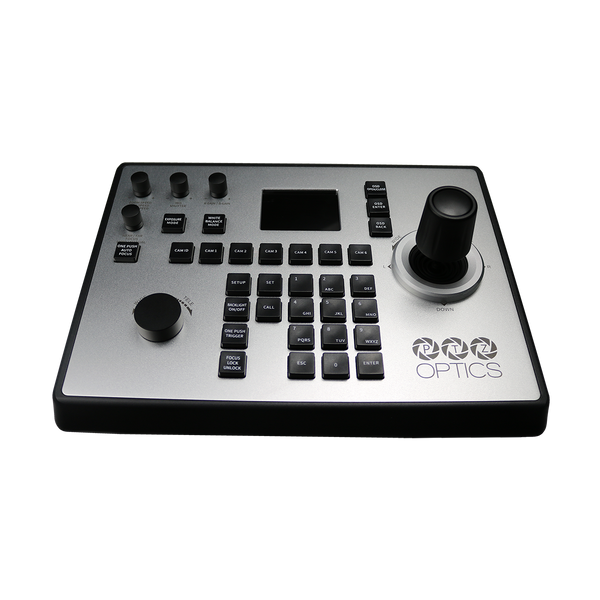

With an expanded LCD screen and a wide range of knobs for fine tuning, a single camera operator can easily:
- Operate cameras in basic, matrix and normal modes
- Access cameras and quickly recall preset locations
- Control white balance, red and blue gain, shutter speed and more!
- Use web-based and smartphone app control for added flexibility
Backed by PTZOptics’ 2-year warranty, plus full support from PTZOptics’ technical team, the PT-JOY-G4 is an ideal choice for video production in schools, houses of worship and other broadcast and live streaming scenarios.
Joystick Compatibility:
- VISCA: Serial connections include PTZ cameras with RS-232, RS-485, and RS-422 from brands such as Aver, AIDA, BirdDog, Bolin, ClearOne, DataVideo, JVC, Lumens, Marshall Electronics, RGBLink, PTZOptics, SONY
- SONY VISCA over IP: Includes PTZ cameras from AIDA, AVer, BirdDog, Bolin, BZBGear, ClearOne, JVC, Lumens, SONY
- PTZOptics VISCA: All PTZOptics cameras, HuddleCamHD
- PELCO-P and PELCO-D: Includes PTZ cameras from BirdDog, DataVideo, JVC, Lumens, RGBLink, Marshall Electronics
*These brands support industry standard protocols. Please check individual camera models to ensure compatibility with the standards supported by our joystick controllers.

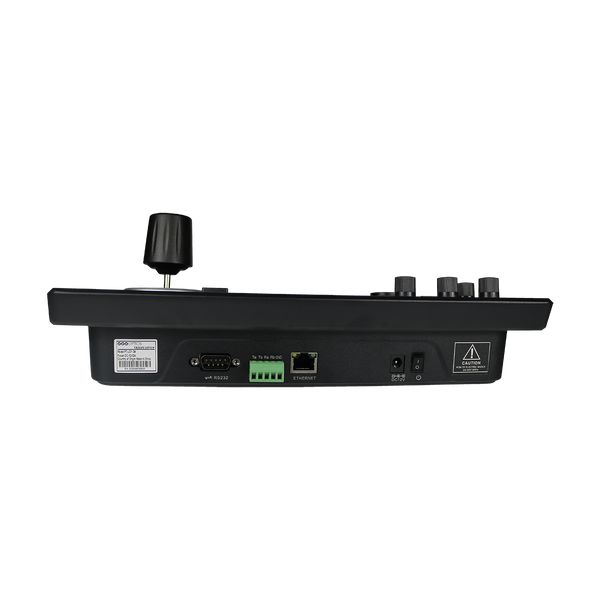

| Key Technical Specifications | Connections | RS-232, RS-485, RS-422, RJ-45 |
| Maximum Cameras | 253 cameras via network 7 cameras via serial VISCA | |
| Recommended Maximum Distance | RS-232 / RS-422: 50 ft (15m) RS-485: 3,937 ft (1200m) Ethernet: 328 ft (100m) | |
| Baud Rate | 1200 ~ 19200 bps | |
| Operation Specifications | Power | 6W (12VDC) / PoE (802.3af) |
| Working Temp | 14° F ~ 122° F (-10° C ~ +50° C) | |
| Working Humidity | 10% ~ 90% (non-condensation) | |
| Weight | 4.45 lbs (2.02 kg) | |
| Dimensions (in.) | 11.938 W x 9.25 D x 4.25 H | |
| Dimensions (mm) | 303.23 W x 234.95 D x 107.95 H | |
| Other | Warranty | 2 Years |
