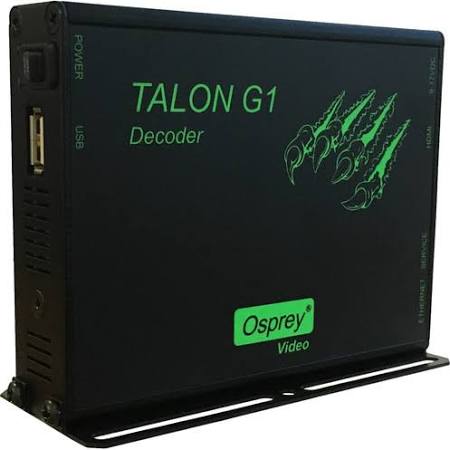

Osprey Talon is a small form-factor H.264 video decoder designed to be easy to use and portable. Using its GigE Ethernet port, Talon can decode up to 4 RTP or UDP streams (Unicast/Multicast) and display them in a resolution of up to 1080p60 via the HDMI / SDI outputs. Talon can also play .TS files from an external flash drive via its USB 2.0 port. It features a fanless design with a low power consumption of <6W. The wide input voltage range of 9VDC - 17VDC also make it a perfect candidate for battery operated equipment and installations.
FEATURESMultiple PIP Options
HDMI Output
MISSION CRITICAL DESIGN Auto Start after Power Outage
Reliable, Solid Hardware Based Decoder
Silent, Fan-less Operation
Low Power Consumption
APPLICATIONS Multi-Stream Monitor
Point-to-Point Source Monitor
Digital Signage
DESCRIPTION
Hardware based H.264 decoder
VIDEO INPUT H.264 RTP/UDP multicast and unicast stream
H.264 .TS file
MAX VIDEO INPUT CAPACITY 1 x 1080p60* or
2 x 1080p30 or
2 x 720p60 or
3 or 4 x 720p30
VIDEO OUTPUT MODE HDMI 720p50, 60
1080p25, 30, 50, 60
LED INDICATORS Power, Unit Ready, Unit Decoding
IN THE BOX Talon G1 hardware decoder
International power supply
Mounting brackets
*100% capacity is based upon pixels per second rather than bitrate. 1080p60 requires 124MP (million pixels) per second. Any combined encoding load that equals less than 124MP per second is acceptable.
