OSPREY 95-00487 Osprey 827e Two Channel Analog and Digital with SimulStream

OSPREY 95-00487 Osprey 827e Two Channel Analog and Digital with SimulStream

OSPREY VIDEO

FREE Ground Shipping

IN STOCK

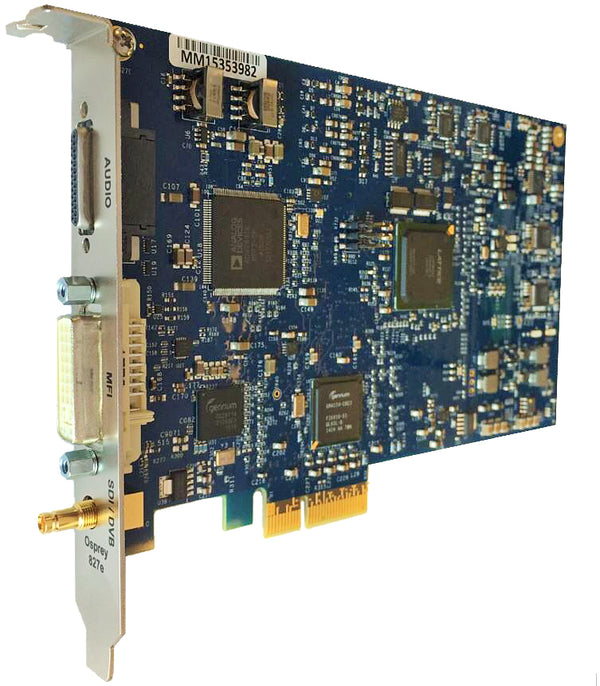

Ideal for high-density applications, the Osprey 827e card features two independent, highly configurable input channels.

Two Channels
  • Channel 1: 3G/HD/SD SDI or DVB-ASI
  • Channel 2: DVI/ HDMI/ VGA/ Component/ Composite and S Video

    Ten Input Formats
  • 3G SDI (424M)
  • HD SDI (292M)
  • SD SDI (259M)
  • DVB-ASI MPTS/SPTS (Windows only)
  • DVI
  • HDMI
  • Composite/CVBS
  • Component
  • S-Video
  • VGA/XVGA

    Audio
  • AES/EBU (mini XLR)
  • SPDIF (mini XLR)
  • HDMI (4 channels LCPM)
  • Balanced (mini XLR)
  • Unbalanced (RCA)

    Osprey SimulStream
    A standard feature on all Osprey 800 series cards, SimulStream allows each input to produce multiple parallel output streams with completely independent settings for color space, cropping, scaling, closed caption and overlays facilitating simultaneous delivery to multiple applications.

    Additional Features
    Signal Loss: In the event of signal loss, the Osprey card automatically replaces the lost video with color bars with options for text overlay and audio tones. This feature helps prevent unplanned stoppage of downstream applications upon signal loss.

    Video Pre-Processing
  • VBI/VANCclosed-caption extraction/on-screen rendering
  • Logo/bitmap overlay
  • Scaling, cropping, de-interlacing and inverse telecine
  • ProcAmp control
  • Vector Scope and Lumi Scope

    Driver Support
  • Microsoft® DirectShow® API
  • Linux V4L2

    SPECIFICATIONS

    Description:
    Two channel mixed analog and digital video with audio features of the Osprey 800a built in.

    Format:
  • PCI Express (x 4): Slots: x 4, x 8, or x 16
  • PCIe 1.1

    Video Input:
  • SDI: 3G SMPTE 424M, HD SMPTE 292M, SD SMPTE 259M, DVB-ASI MPTS & SPTS
  • HDMI (non HDCP)
  • DVI
  • VGA
  • Composite, component (YPbPr)
  • YCA

    Video Connector:
  • SDI (DIN 1.0/2.3x 1)
  • DVI x 1

    Video Modes:
    1080i 50, 59.94, 60
    1080p 23.98, 24, 25, 29.97, 30
    720p 23.98, 24, 25, 29.97, 50, 59.94, 60
    480i 29.97, 30 (NTSC)
    576i 25 (PAL)
    576p 25, 50

    Analog Modes:
    1920 x 1080/23.98, 24, 25, 50, 59.94, 60
    1600 x 1200/60
    1400 x 1050/60, 75
    1360 x 768/60
    1280 x 1024/60, 85
    1280 x 960/60, 85
    1280 x 800/60
    1280 x 768/75, 85
    1280 x 720/50, 60
    1024 x 768/60, 85
    800 x 600/85
    640 x 480/60, 85

    Audio Input:
  • Balanced analog audio (2 stereo pair, 4 x mini XLR) Always available
  • Two additional pairs from list below
    -AES digital audio (2 stereo pair, 2 x mini XLR)
    -SPDIF digital audio (2 stereo pair, 2 x RCA)
    -Unbalanced analog audio (2 stereo pair, 4 x RCA)

    Available Drivers:
  • Microsoft Windows
  • Linux
    For more information on the latest OS compatibility, please visit www.ospreyvideo.com

    Dimensions:
  • 6.60” L x 4.38” H (16.76cm L x 11.13cm H)
  • Full height/half length

    Environmental:
  • Operating Temp Range: 0° to 40° C
  • Non-Operating Temp Range: -40° to +75° C
  • Rel Humidity Operating: Between 5 % and 80 % (noncondensing)
  • Rel Humidity Non-Operating: 95 % RH (non-condensing); gradient 30% per hour
  • Operating Altitude Range: 0 to 3,048 meters (10,000 feet)
  • Non-Operating Altitude Range: 0 to 15,240 meters (50,000 feet)

    System recommendations:
  • High quality video capture requires a PCIe bus with direct access to the CPU

    Warranty:
  • 1 year limited hardware warranty

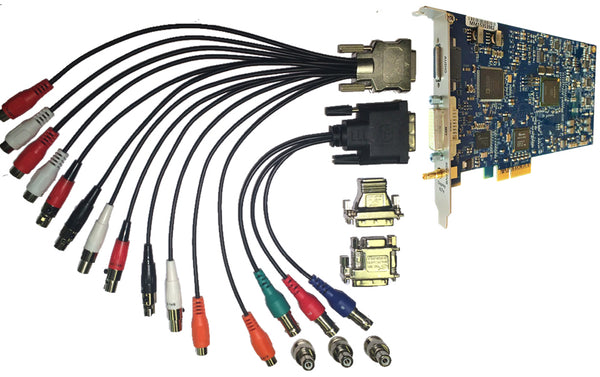

    b In the Box:
  • DVI to VGA
  • DVI to HDMI
  • DVI to Component (BNC x 3)
  • Audio dongle
