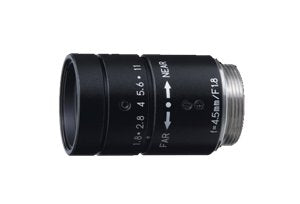

The Kowa LM5NF lens is a 1/3" 4.5mm NF mount high resolution lens perfect for use with the Sony XC-505 camera. This lens gives an identical field of view on the 1/3" format XC505 camera as the discontinued VCL-06S12XM 6.0mm lens gave on the old 1/2" XC-555 camera.
LM5NF FEATURES:Megapixel Resolution 4.5mm Focal Length Metal housing Metal mount Locking screws for iris and focus
SPECIFICATIONS Focal Length: 4.5mm Main Sensor Size: 1/3" Iris Range (F-Stop): F1.8~11 Angle of View: Vertical 45.0 degrees, Horizontal 59.2 degrees, Diagonal 72.5 degrees Distortion (TV): -2.8% Shooting Range at M.O.D: Vertical 89mm, Horizontal 122mm, Diagonal 158mm Minimum Focus Distance: 0.1 meter Flange Back in Air: 12mm Back Focus in Air: 8.11mm Diameter: Front 12.4mm Rear 6.4mm Mount: NF Exit Pupil: -44.3mm Weight: 35 grams Temperature Range: -10 Celsius to +50 Celsius
