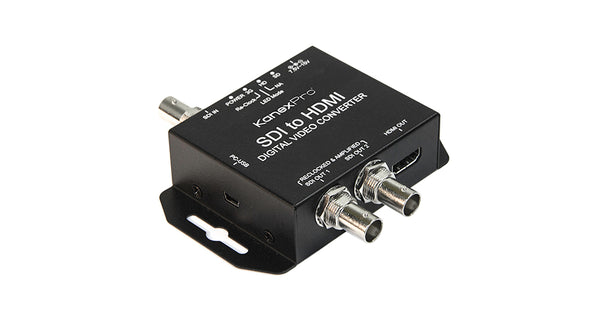

KANEXPRO SDI-SDHDXPRO SDI to HDMI Converter with Signal EQ & Re-Clocking

The KanexPro next generation of SDI to HDMI converters are designed for connecting your professional SDI video equipment to any HDMI display or consumer based TV’s. It accepts SD, HD or 3G-SDI signals and converts it to HDMI maintaining signal integrity of the original image and resolution. The converter also has two SDI loop outputs for sending re-clocked SDI signals and connecting to down-stream equipment.

FEATURES

Get the highest quality 3G-SDI conversion to HDMI

2 x SDI Loop outputs

Supports 2-channel audio

Automatically switches between SD, HD and 3G-SDI standards

Supports multiple video resolutions: SDI 525i, 625i

HD: 720p 24, 25,30,50 & 60 Hz.

HD: 1080i 50 & 60 Hz.

HD: 1080p 24, 25,30, 50 & 60 Hz.

3G mode length up to 130m

HD mode length up to: 170m

SD mode length up to 300m

Supports conversion to SMPTE 425M Level A 1080p 50/59.94/60 4:2:2 10-bit

Supports cascading of multiple SDI's in application

Compact in size, perfect for mobile broadcasting units and users

Micro-USB Port for firmware update

Locking power supply & mounting ears
Note: RG59 cable is required for SDI transmission, we recommend a 75-ohm high quality coaxial cable.

APPLICATIONS

Surveillance systems, rental & staging facilities, post-production, TV studio, digital cinema, and other A/V applications

SPECIFICATIONS

Video Input

Input: 1 x SDI

Input Connector: 1 x BNC

Input Video Signal: SD/HD/3G SDI

Video Output

Output: 1 x HDMI Female

Output connector: HDMI

Output Video Signal: SD/HD/3G SDI/DVI/ HDMI

Resolutions (HDTV)

1080p,1920 x 1080

720p; 1280 x 720

1280 x 720, 480i (NTSC mode) 576i Standard PAL mode

Enviromental

Operating Temperature: 0°C to +70°C

Operating Humidity: 10% to 85 % RH (no condensation)

Storage Temperature: -10°C to +80°C

Storage Humidity: 5% to 90 % RH (no condensation)

Regulatory Approvals Converter: FCC, CE, UL

Regulatory Approvals Power Supply: FCC, CE, UL

Mechanical

Size: (LWH): 3.14"x1.61"x0.98"

Weight (net): 0.33 lbs (150g)

Power Requirements

External power supply: 5V -12V

Power consumption: 5 W

Waranty

1 year parts & labor

Package Contents:

3G-SDI to HDMI converter

5V DC power supply

Operation manual
