JVC GY-HM620U

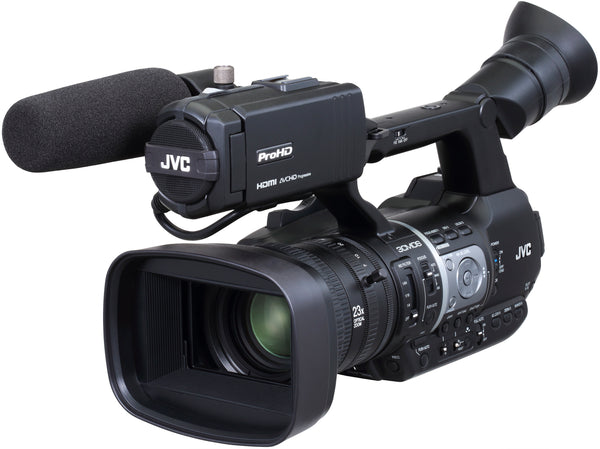

JVC GY-HM620U ProHD Handheld Camcorder

JVC

FREE Ground Shipping

OUT OF STOCK

The GY-HM620 is an advanced handheld ProHD camera that delivers unsurpassed imagery and offers features for news, sports, and independent production. Based on JVC's popular GY-HM600, the new 620 has upgraded CMOS devices for greater sensitivity and a brighter LCD display for outdoor daylight viewing. Versatile and extremely easy to use, there's no better camera for fast paced HD field production.

FEATURES
  • Newly designed 1/3-inch 12-bit CMOS sensors (1920 x 1080 x 3)
  • F12 Sensitivity
  • 23x Fujinon Auto focus zoom lens with manual functions
  • F1.6-3.0, 23x, f=4.1-94.3mm (35mm conversion:29 to 667mm)
  • Optical image stabilizer
  • 3 position ND filter (1/4, 1/16, 1/64)
  • 0.45-inch 1.22M pixel color viewfinder
  • Upgraded 3.5-inch 920K pixel LCD display with focus assist
  • SDXC/SDHC memory card recording (2 slots for dual-backup, continuous recording)
  • Large file size support with SDXC card
  • 50Mbps H.264 Extreme High Quality mode (XHQ)
  • Multiple encoding formats:
    - HD MPEG2 (35/25/19Mbps)
    - AVCHD 1920x1080 60i
    - 1080/60p recording capability
    - SD H.264
  • Wide media format compatibility:
    - .MOV (Final Cut Pro)
    - .MP4 (XDCAM EXâ„¢)
    - AVCHD
  • Professional switch layout and comprehensive video settings
  • Pre Rec (retro) mode (15 sec.)
  • Interval (time lapse) recording
  • Built-in stereo microphone
  • 2-channel balanced audio inputs (mic/line switchable) w/phantom power supply
  • HD/SD-SDI, HDMI Outputs
  • Wired remote control connector
  • High performance 2D DNR

    GENERAL SPECIFICATIONS (GY-HM620 / GY-HM660)

    Power

    DC 12V (AC adaptor), DC 7.2V (Battery)

    Power consumption

    Approx. 12W (with VF and LCD monitor)

    Dimensions

    178(W) x 198(H) x 416(D)mm (7" x 7-13/16" x 16-3/8")

    Mass

    Appro.2.4kg (5.3lbs):GY-HM620, 2.45kg(5.4lbs):GY-HM660 (Including battery)

    Operating temperature

    0 to 40 (32 to 104 )

    Storage temperature

    -20 to 50 (14 to 122 )

    Operating humidity

    35% to 80%

    Storage humidity

    Under 85%

    CAMERA

    Image sensor

    1/3" 2.2M pixels progressive scan 3CMOS

    Synchronizing system

    Internal synchronization

    Stabilizer

    Optical image stabilizer

    Lens

    Fujinon F1.6-3.0, 23x, f=4.1-94.3mm (35mm conversion:29 to 667mm)

    Filter diameter

    72mm

    Shutter speed

    1/4 to 1/10000

    Gain

    -6, -3, 0, 3, 6, 9, 12, 15, 18 dB, Lolux, ALC

    ND filter

    1/4, 1/16, 1/64

    LCD display

    3.5” 920K pixels, 16:9

    Viewfinder

    0.45” 1.22M pixels, 16:9

    VIDEO/AUDIO RECORDING

    Recording media

    2x SDHC/SDXC memory card Class 6/10

    Video recording

    Video codec: MPEG2 Long GOP(HD), AVCHD, H.264(SD)


    File format: MOV(HD/SD:H.264), MP4(XDCAM EX), MTS(AVCHD), MXF(GY-HM660 only)

    Recording mode

    MPEG-2 Long GOP


    NTSC setting: HQ mode:1920 x 1080/59.94i, 29.97p, 23.98p, 1440 x 1080/59.94i,


    1280 x 720/59.94p, 29.97p, 23.98p


    SP mode: 1440 x 1080/59.94i


    PAL setting: HQ mode:1920 x 1080/50i, 25p, 1440 x 1080/50i


    SP mode: 1440 x 1080/50i


    AVCHD


    NTSC setting: HQ mode:1920 x 1080/59.94i, SP mode:1920 x1080/59.94i


    PAL setting: HQ mode:1920 x 1080/50i, SP mode:1920 x1080/50i


    HD(H.264)


    NTSC setting: XHQ mode: 1920 x 1080/59.94p, 59.94i, 29.97p, 23.98p (50Mbps)
    UHQ mode: 1920 x 1080/59.94i, 29.97p, 23.98p (35Mbps)
    PAL setting: UHQ mode: 1920 x 1080/50p, 50i, 25p (50Mbps), 1920 x 1080/50i, 25p (35Mbps)


    SD(H.264)


    NTSC setting: 720 x 480/59.94i(GY-HM620U/HM660U only)


    PAL setting: 720 x 576/50i(GY-HM620E/HM660E only)


    Proxy(H.264)


    NTSC setting: LP/LV mode:480 x 270/29.97p, 23.98p


    PAL setting: LP/LV mode:480 x 270/25p

    Audio recording

    LPCM 2ch, 48kHz/16-bit(MPEG-2 Long GOP/H.264), AC3(AVCHD)

    INTERFACE

    Video output

    AV output (f3.5mm mini jack x1)


    SDI output (BNC x1)


    HDMI output x1

    Audio input

    XLR x2 (MIC,+48V/LINE), f3.5mm mini jack x1

    Audio output

    AV output (f3.5mm mini jack x1)

    Headphone

    f3.5mm mini jack x1

    Time code link input/output

    RCA x1

    Remote

    f2.5mm mini jack x1

    PROVIDED ACCESSORIES

    Battery pack x1, AC adapter x1, AV cable x1
