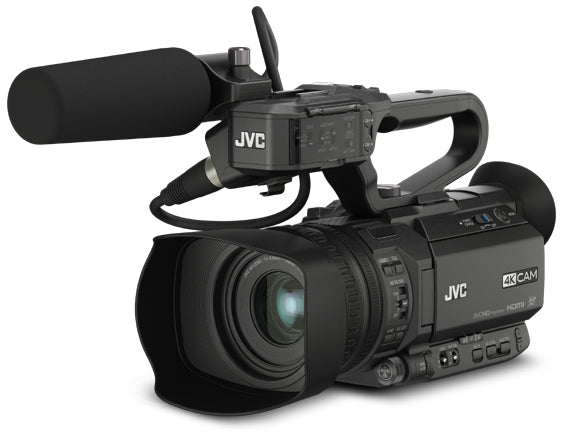

JVC GY-HM200HW House of Worship Streaming 4KCAM Compact Handheld Camcorder
JVC GY-HM200HW House of Worship Streaming 4KCAM Compact Handheld Camcorder

JVC GY-HM200HW House of Worship Streaming 4KCAM Compact Handheld Camcorder

JVC

FREE Ground Shipping

OUT OF STOCK

The GY-HM200HW is an innovative professional quality camera that enables a single-operator to stream and record church events with professional quality titling. It's designed so that one person - even a volunteer with little experience - can stream your services through YouTube or Facebook and simultaneously make professional quality recordings. Its Full Auto Mode handles exposure, color balance and focus, so that your operator only needs to point and shoot. The camera comes with graphic layouts for a variety of religious events. Congregation specific and event related text can easily be changed using a browser equipped device (tablet or smartphone.) Audio from your mixing console can be fed directly into the camera's balanced XLR inputs. For churches with limited equipment and personnel resources, this camera is an affordable solution for producing professional quality coverage.

FEATURES
  • Live Streaming to internet with optional Wi-Fi® or wired network adapter—no computer required!
  • Ideal for single camera, single operator production
  • Customizable lower third graphic overlays
  • Selectable pre-loaded religious icons
  • Compatible with Verizon 4G LTE adapter for off premises streaming
  • Integrated Ultra HD 12x Zoom Lens with 24x Dynamic Zoom in HD mode
  • Full HD recording to SDHC/SDXC memory (with or without titles)
  • Options for large viewfinder, rear lens control
  • 2-channel XLR audio inputs with phantom power
  • Advanced browser based IP remote control and viewing
  • 120 fps Slow Motion Recording
  • 4K UHD recording and live output (without titles)

    GENERAL SPECIFICATIONS

    Power

    DC 12V (AC adapter), DC 7.4V (Battery)

    Power Consumption

    Approx. Approx. 7.9W （with VF in 4K REC mode, default setting）　　　　　　　　　

    Weight

    Approx. 3.53 lb (1.6kg) (including battery)

    Dimensions

    149(W) x 191(H) x 307(D)mm　　　　　　　　　　　　　　　

    Operation temperature

    0℃ to 40℃　(32°F to 104°F)

    Storage temperature

    -20℃ to 50℃ ( 14°F to 122°F)

    Operating humidity

    30% to 80%

    Storage humidity

    under 85%

    CAMERA

    Image Sensor

    1/2.3-inch Back Side Illuminated CMOS

    Total 12.4M pixels

    Synchronizing

    Internal synchronization

    Stabilizer

    Optical image stabilizer

    Shutter speed

    1/6～ 1/10000

    Lens

    F1.2 (wide) to F3.5 (tele)

    f=4.67mm to 56.04mm

    35mm equivalent: 29.6mm to 355mm

    Filter diameter

    62mm

    Gain

    0, 3, 6, 9, 12, 15, 18,21,24 dB, Lolux(30,36 dB), AGC

    ND filter

    none , 1/4, 1/16

    LCD display

    3.5-inch 920 k pixels, 16:9

    Viewfinder

    0.24-inch 1.56 M pixel, 16:9

    VIDEO/AUDIO RECORDING

    Recording media

    2x SDHC/SDXC memory card (4K:UHS-1 U3, HD:50Mbps Class10, HD:35Mbps Class6, AVCHD/SD Class4)

    Video recording

    Video codec: MPEG-4 AVC/H.264 (4K/HD/SD/Proxy) ,AVCHD(HD/SD)

    　

    File format : MOV(H.264), MTS(AVCHD)

    4K(H.264)

    　

    NTSC setting: 3840 x 2160/29.97p, 23.98p (70,150 Mbps)
    PAL setting: 3840 x 2160/25p (70,150Mbps)

    PAL setting: 3840 x 2160/25p

    　HD(H.264)

    　

    　

    　

    　

    NTSC setting:

    YUV422 mode:1920 x1080/59.94p.29.97p,23.98p(50Mbps),

    XHQ mode: 1920x1080/59.94p,29.97p,23.98p(50Mbps)

    UHQ mode: 1920x1080/59.94i,29.97p, 23.98p(35Mbps) 1280x720/59.94p(35Mbps)

    PAL setting: XHQ mode:1920 x 1080/50p(50Mbps)

    XHQ mode:1920x1080/50p,50i,25p(50Mbps),1920x1080/50i,25p(35Mbps), 1280x720/50p(35Mbps)

    AVCHD

    　

    　

    　

    　

    　

    NTSC setting: Progressive mode(Max 28Mbps):1920 x 1080/59.94p,

    HQ mode(24Mbps):1920 x 1080/59.94i, SP mode(17Mbps):1920 x1080/59.94i

    LP mode(9Mbps):1440 x 1080/59.94i (Web mode), EP mode(5Mbps):1440 x1080/59.94i (Web mode)

    PAL setting: Progressive mode(Max 28Mbps):1920 x 1080/50p,

    HQ mode(24Mbps):1920 x 1080/50i, SP mode(17Mbps):1920 x1080/50i

    LP mode(9Mbps):1440 x 1080/50i (Web mode), EP mode(5Mbps):1440 x1080/50i (Web mode)

    　SD(MOV/AVCHD)

    NTSC setting: 720 x 480/59.94i (8 Mpbs)

    　Proxy(H.264)

    NTSC setting: HQ mode(3Mbps):960 x 540/29.97p, 23.98p, LP mode(1.2Mbps):480 x 270/29.97p, 23.98p

    PAL setting: HQ mode(3Mbps):960 x 540/25p, LP mode(1.2Mbps):480 x 270/25p

    　

    Audio recording

    LPCM 2ch, 48kHz/16-bit(4k/HD/SD MOV)), AC3 2ch(AVCHD), μlow 2ch(Proxy)

    LIVE VIDEO STREAMING

    Protocol

    RTMP, MPEG2-TS/UDP, MPEG2-TS/TCP, RTSP/RTP, ZIXI

    Bitrate

    0.2 - 12 Mbps

    Resolution

    1920x1080, 1280x720, 720x480, 480x270

    INTERFACE

    Video output

    　

    　

    AV output (φ3.5mm mini jack x1)

    SDI output (BNC x1)

    HDMI output x1

    Audio input

    XLR x2 (MIC,+48V/LINE), φ3.5mm mini jack x1

    Audio output

    AV output (φ3.5mm mini jack x1)

    Headphone

    φ3.5mm mini jack x1

    Remote

    φ2.5mm mini jack x1

    USB

    HOST x1(Network Connection) , DEVICEx1(Mass storage)
    Supported devices: Verizon, AT&T 4G LTE modems, Wi-Fi and LAN adapters

    Network Function

    Live Video Streaming, FTP, Remote Control

    INCLUDED ACCESSORIES

    Handle unit, Battery(SSL-JVC50) x1, AC Adapter x1
