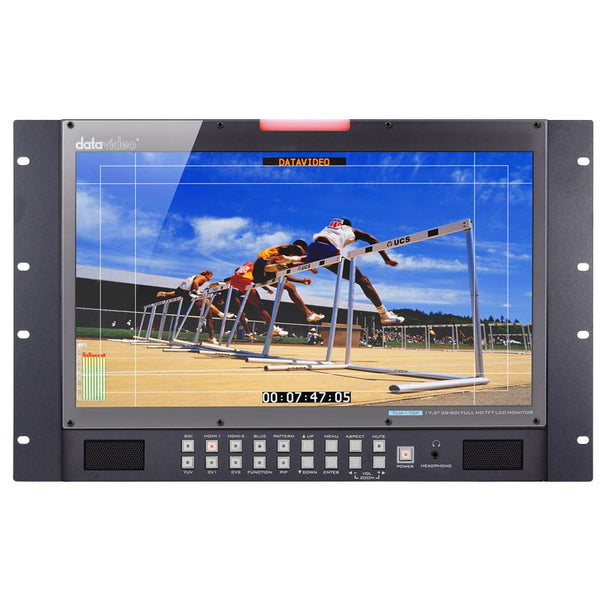

The Datavideo TLM-170PR is a 17.3", 7U rackmount video monitor that delivers superb FULL HD 1080P image quality from various inputs including 3G-SDI. The monitor is a professional grade panel designed to give excellent colour and video performance across a range of formats and standards as well as 24/7 operation.
The TLM-170PR Front Panel Buttons allow quick and easy selection of source input as well as PIP, Aspect ratio, Blue only, Pattern (Colour Bars), Menu and audio controls. Input HD/SD sources via the rear panel SDI, HDMI, Component (Y, Pb, Pr) and Composite connections as well as monitoring RCA phono or embedded SDI / HDMI audio.
The Datavideo TLM-170PR monitor has an on-screen display (OSD) menu which allows control and set up of brightness, contrast, saturation, hue, sharpness, colour temperature and picture in picture. It also has RJ-45 TCP/IP connector to allow remote set up of the monitor using a PC / Mac based web browser. The menus can also be used to display onscreen overlays for frame marker, 4:3 marker, 16:9 Marker, Cinema Zone Marker, Center Point, embedded SDI Timecode and Monitor Title.
The Datavideo TLM-170PR monitor can be operated from AC or 12V DC power making it flexible for use in a Studio, Gallery, Post Production Edit Suite or even in an OB van.
7U Rackmount Unit
17.3" FULL HD 1080p LCD Panel with Underscan and Overscan menu options
Digital Video Inputs: SD/HD-SDI with loop thru and 2x HDMI
Digital Audio Inputs: via SDI or HDMI inputs
Analogue Video Inputs: Component [ Y,Pb,Pr ], Composite x2 with loop thru
Mono Audio Inputs: Single RCA phono socket for analogue inputs
Head phone 3.5mm stereo jack socket for discrete audio monitoring
Front Panel Buttons allow quick and easy selection of source input as well as PIP, Aspect Ratio, Blue only, Pattern ( Colour Bars ), Menu and audio controls
Colour temperature menu option has 3 modes (6500K, 9300K and user defined)
OSD audio level peak meter for SDI and HDMI based digital audio inputs.
On screen overlays for frame marker 80%, 90%, 4:3 marker, 16:9 Marker, Cinema Zone Marker, Center Point, embedded SDI Timecode and Monitor Title
Bi-colour Tally light [Red or Amber] and 3.5mm Jack Tally input socket
Analogue Audio external speaker outputs L-, L+ and R-, R+ [Max 5v p - p (2w)]
RJ-45 TCP/IP connection allows remote set up of the monitor using a PC / Mac based browser
USB 2.0 port for easy update of firmware with a USB 2.0 pen drive
IN THE BOX 1x AD DC 12V with Power Cord
2x Ear rack
8x Screw Æ3.0*6m/m
8x Screw M5 x 10mm
The TLM-170PR Front Panel Buttons allow quick and easy selection of source input as well as PIP, Aspect ratio, Blue only, Pattern (Colour Bars), Menu and audio controls. Input HD/SD sources via the rear panel SDI, HDMI, Component (Y, Pb, Pr) and Composite connections as well as monitoring RCA phono or embedded SDI / HDMI audio.
The Datavideo TLM-170PR monitor has an on-screen display (OSD) menu which allows control and set up of brightness, contrast, saturation, hue, sharpness, colour temperature and picture in picture. It also has RJ-45 TCP/IP connector to allow remote set up of the monitor using a PC / Mac based web browser. The menus can also be used to display onscreen overlays for frame marker, 4:3 marker, 16:9 Marker, Cinema Zone Marker, Center Point, embedded SDI Timecode and Monitor Title.
The Datavideo TLM-170PR monitor can be operated from AC or 12V DC power making it flexible for use in a Studio, Gallery, Post Production Edit Suite or even in an OB van.
IN THE BOX
