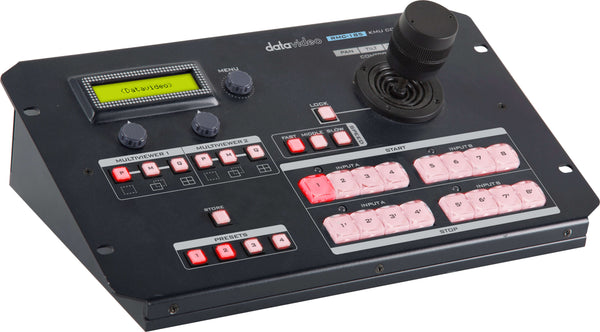

The RMC-185 is a cost effective physical controller designed specifically for control of the KMU series 4K Multi-Camera Processor.
The RMC-185 interfaces with the KMU-100 via an RS-422 interface. This dedicated controller allows operators to make smooth zoom and pan/tilt motions by using the joystick.
4 presets are available that hold scale, position, motion path and speed of all 4 individual 3Gb/s outputs, per channel. Buttons allow start/stop/reset of motion in a predefined speed of every individual output.
Dedicated control surface for KMU-100
Provides easy and intuitive control of the KMU-100
Easily pan, tilt and zoom to create the user defined windows on the 4K signal
Switch between live and preview inputs
LCD display showing setup menu options
Three Multiviewer modes (Preview, A to B Motion and Quad)
Robust, rugged metal housing
Dimensions: 310 x 129.98 x 170mm
Weight: 1.5 Kg
IN THE BOX 1x RMC-185 Main Unit
1x DC 12V Power Adaptor
1x RMC-185 Thank you Card
1x D-Sub 9Pin to RJ-45 Cable
