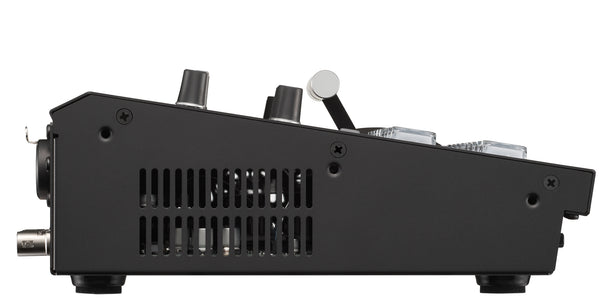

ROLAND V-60HD HD Video Switcher

Live event production and streaming continues to grow and the demand for more features requires a sophisticated feature set. The V-60HD simplifies your set-ups and combines the best of both worlds that includes SDI inputs for camera sources and scaled HDMI inputs for data, computer, tablet and other video sources. The combination of powerful audio features that include multi-channel embedded audio, XLR and RCA analog inputs, de-embedded audio from digital SDI or HDMI sources plus a variety of video connections with a Program and Aux Bus makes the V-60HD ideal for a variety of live event production and streaming applications.

FOR LIVE PRODUCTION
Corporate event production is the fastest growing live event space with companies hosting town halls, meetings, trainings, new product announcements, both in person and streaming.

The V-60HD is portable and small enough to be used in multiple locations in an office or outside meeting location.

The four SDI inputs and two HDMI inputs are perfect for switching cameras and computers at the same time for dynamic presentations.

Not all cameras support full 1080p so the de-interlacer on the SDI inputs allows allows you to mix and match 1080i and 1080p SDI video sources multiple camera without external converters.

Audio is easier to mix than ever before using the V-60HD’s auto mixing function that will automatically balance audio levels from multiple microphones and video sources freeing up the operator to focus on switching the video for the event.

FOR EDUCATION
Video communication helps improve the effectiveness of education when used for streaming lectures, assemblies, distance learning, sports, live performances or theater productions.

Multi destination outputs include Program, Preview and AUX buses and make it easy to send the main output to the primary screen or live stream and presenter notes to a presenter’s monitor.

Audio auto-mixing automatically adjusts audio level based on weighting ensuring even levels for the room mix, presenter to send to recording, live stream or in-room speakers.

Educators can use the multi-channel audio embed function to record 8 discreet audio channels to an SDI video recorder to fix audio issues in later editing or separate multi-language audio sources post event.

The V-60HD’s user interface is easy for students, novices and can be controlled remotely through the LAN port using Roland’s Remote-Control Software from PC or Mac.

For fixed installations, the V-60HD can be remotely controlled through the RS-232 port using touch panel interfaces making it easy to control functions. FOR CHURCHES/THEATERS
The V-60HD is ideal for multiscreen environments usually found in churches, conference centers, hotels, and trade show facilities where different content needs to be switched to independent screens.

The dedicated Aux buttons make switching to a second destination as easy as switching to the main screen

A newly designed wireless tally system for iOS and Android devices makes for smoother events by providing tally that helps talent and camera operators identify which camera is current selected for program and which camera will be switched to next.

Integrated audio inputs and advanced effects including Auto-Mixing and powerful dynamics make the V-60HD an ideal streaming mixer solution to remix stems from an audio console and adjusted for broadcast.

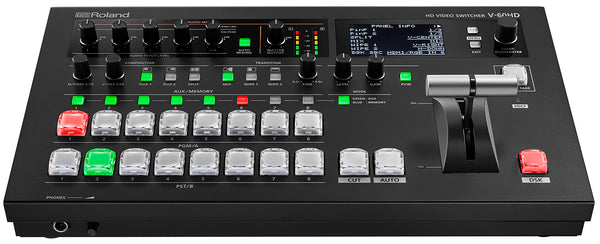

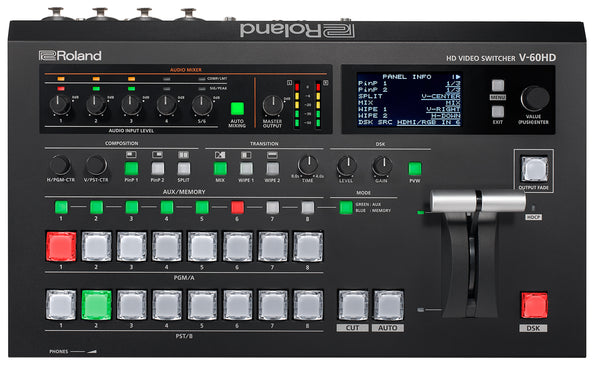

Professional User Interface - Professional broadcast cross point buttons with PGM/PST LED color indicators. Rugged T-Bar, DSK quick edit knobs for key level and gain. Two dedicated PinP and Split buttons with knobs for center framing of Split and PinP placement. Change transition type using either mix or two preset wipe buttons with dedicated transition dissolve time knob. Front panel 3-inch LCD display with quick access menu navigation to adjust switcher parameters.

Video Composition - Professional broadcast cross point buttons with PGM/PST LED color indicators. Rugged T-Bar, DSK quick edit knobs for key level and gain. Two dedicated PinP and Split buttons with knobs for center framing of Split and PinP placement. Change transition type using either mix or two preset wipe buttons with dedicated transition dissolve time knob. Front panel 3-inch LCD display with quick access menu navigation to adjust switcher parameters.

AUX Bus - A dedicated AUX bus can be assigned to any of the four discreet SDI or HDMI outputs providing seamless switching from the 8-input channels (4 SDI, 2 HDMI or 1 RGB and 2 Still Images). Dedicated AUX layer cross-point buttons ensures quick operation and seamless switching.

Audio Mixer with Preamp and Dynamics (Compressor) - The V-60HD powerful preamp and dynamics effects include a high-pass filter, gate, compressor, 3-band EQ, delay and ability to select audio follows video channel so audio passes through when a specific video source is selected. Dynamics can be adjusted from the onscreen menu or accessed through the powerful Remote-Control Software for Windows or Mac.

Auto Mixing - The included Auto-Mixing function ensures the correct mix for multiple panel participants at conferences by automatically adjusting levels across multiple audio sources. A priority weighting assignment that is channel specific can be set giving the moderator or priority audio channel a higher volume level while using the Auto-Mixing function allowing the operator to focus on video switching and production.

Discreet Multi-Channel Audio Embedding - Assign up to eight analog audio inputs a separate audio embed channel on SDI 1 and 2 outputs to ensure a separate mix pre-effect (dry) or post effect (wet) for correcting audio problems post live event. This feature is additionally useful for multi-language events to record the voice-over or language translation on its own audio channel to a separate master.

SPECIFICATIONS

Video

Video Processing

4:2:2 (Y/Pb/Pr), 8-bit

Input Connectors

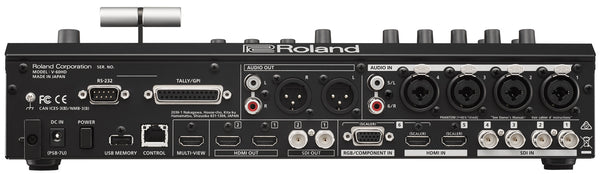

SDI IN 1--4: BNC type x 4
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M

HDMI IN 5--6: HDMI type A x 2
* HDCP Supported
* Multi-format Supported

RGB/COMPONENT IN 6: HD DB-15 type x 1
* INPUT 6: HDMI or RGB/COMPONENT selected.
* Multi-format Supported

Output Connectors

SDI OUT 1--2: BNC type x 2
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M

HDMI OUT 1--2: HDMI type A x 2
HDMI MULTI-VIEW: HDMI type A x 1
* HDCP Supported

Input formats

SDI IN 1--4: Conforms to SMPTE 296M, SMPTE 274M
720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p)
1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080i or 1080p)
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The video signal frame rate can be selected at the SYSTEM menu (59.94 or 50).

HDMI IN 5:
HDMI/RGB/COMPONENT IN 6:
480/59.94i, 576/50i, 480/59.94p, 576/50p
720/59.94p, 720/50p, 1080/59.94i, 1080/50i
1080/59.94p, 1080/50p
VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
WXGA (1280 x 768/60 Hz), SXGA (1280 x 1024/60 Hz)
FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The video signal frame rate can be selected at the SYSTEM menu (59.94 or 50).

Still Image

Windows(R) Bitmap File (.bmp)
* Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
* It can be stored up to 2 files in the internal memory.

Output formats

SDI OUT 1--2: Conforms to SMPTE 296M, 274M
HDMI OUT 1--2:
720/59.94p, 720/50p (SYSTEM FORMAT = 720p)
1080/59.94i, 1080/50i (SYSTEM FORMAT = 1080i)
1080/59.94p, 1080/50p (SYSTEM FORMAT = 1080p)
* The video signal frame rate can be selected at the SYSYTEM menu (59.94 or 50).

HDMI MULTI-VIEW:

1080/59.94p, 1080/50p

Video Effects

Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (30 types)
Composition: PinP(SQUARE, CIRCLE, HEART, DIAMOND), DSK (Luminance Key, Chroma Key)
Others: Flip horizontal, Output fade, Still Image Capture, Still Image Playback, Test pattern output

Audio

Audio Processing

Sampling rate: 24 bits/48 kHz

Audio formats

SDI IN: Linear PCM, 24 bits/48 kHz, 2ch (Conforms to SMPTE 299M)
SDI OUT: Linear PCM, 24 bits/48 kHz, 8ch (Conforms to SMPTE 299M)
HDMI IN/OUT: Linear PCM, 24 bits/48 kHz, 2ch

Input Connectors

Digital: SDI IN 1--4: BNC tyep x 4
HDMI IN 5--6 (HDMI Type A 19 pins) x 2

Analog: AUDIO IN 1--4: Combo type (XLR, 1/4-inch TRS phone), phantom power
AUDIO IN 5--6: RCA phono type

Phantom Power

DC 48 V (unloaded maximum), 10 mA (maximum load)
* Current value per channel

Output Connectors

Digital: SDI OUT 1--2: BNC type x 2
HDMI OUT 1--2: HDMI type A x 2
HDMI MULTI-VIEW: HDMI type A x 1

Analog: AUDIO OUT: XLR type
AUDIO OUT: RCA phono type
PHONES: Stereo 1/4-inch phone type

Input Level

AUDIO IN 1--4: -60--+4 dBu (Maximum: +22 dBu)
AUDIO IN 5--6: -10 dBu (Maximum: +8 dBu)

Input Impedance

AUDIO IN 1--4: 10 k ohms (HEAD AMP GAIN 0--23 dB), 5 k ohms (HEAD AMP GAIN 24--+64 dBu)
AUDIO IN 5--6: 15 k ohms

Output Level

AUDIO OUT (XLR): +4 dBu (Maximum: +22 dBu)
AUDIO OUT (RCA): -10 dBu (Maximum: +8 dBu)
PHONES: 92 mW + 92 mW (32 ohms)

Output Impedance

AUDIO OUT (XLR): 600 ohms
AUDIO OUT (RCA): 1 k ohm
PHONES: 10 ohms

Audio Effects

Auto Mixing, EQ, Delay, Compressor, HPF, Gate, Multi-Band Compressor, Limiter

Others

Other Connectors

USB: USB A type (for USB memory)

TALLY/GPI: DB-25 type (Female)(Tally: 12, GPI: 8)
RS-232: DB-9 type (Male) *for Remote Control
LAN: RJ45 100BASE-TX *for Remote Control

Other Functions

MEMORY (8 types)
Panel lock function
EDID Emulator
EDID Emulator

Display

Graphic LCD: 128 x 64 dots

Power Supply

AC Adaptor

Current Draw

3.1 A

Power Consumption

37.0 W

Operation Temperature

+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit

Dimensions

356 (W) x 221 (D) x 96 (H) mm
14-1/16 (W) x 8-3/4 (D) x 3-13/16 (H) inches

Weight (excluding AC adaptor)

3.0 kg
6 lbs 10 oz

Accessories

Owner's Manual
AC adaptor
Power cord

* 0 dBu=0.775 Vrms
