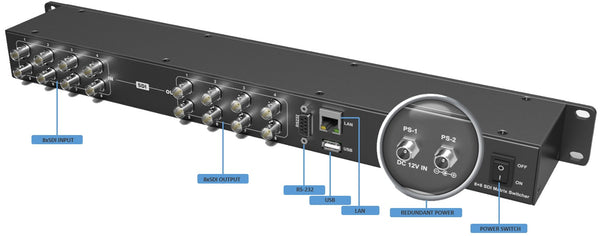

MSS-8 is an affordable 8x8 Matrix Switcher in a small 1U 19” Rackmount package. All Inputs and Outputs are full size BNC connections. The unit features an integrated status display, multiple control options and lockout functionality. For critical applications a second 12V Power Supply is included for redundancy. Pass through of all embedded Audio and Ancillary Data.
Video Connections
16 Full Size BNC
SDI Video Rates
3G-A/3G-B/HD/SD/ASI
Video Standards
525i 59.94 NTSC, 625i 50 PAL
720p 50,59.94,60
1080p 23.98,24,25,29.97,30,50,59.94,60
1080psf 23.98,24,25,29.97,30
1080i 50,59.94,60
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 424M, SMPTE 425
SDI Metadata Support
Pass through of all embedded ancillary data
Audio
Up to 16 Embedded Audio Channels pass through
Audio Embedding of one Stereo Pair into the MutliView Output
SDI Color Precision
RGB 4:4:4, YUV 4:2:2/4:4:4
Multiple Rate Support
Auto Detect SD/HD/3G-SDI and ASI
Power
Redundant 6-24VDC Power Inputs (Two Power Supplies Included)
Power Requirement 7W
Controls
Front Panel
Ethernet
RS232
Warranty
2 years
