ZVPRO810I

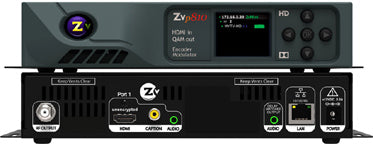

ZEEVEE ZvPro 810i 1-Ch Unencrypted HDMI Video Distributor w/ VOIP Streaming

ZEEVEE

FREE Ground Shipping

IN STOCK
ZvPro I-Series
The new I-Series of HD encoder/modulators has all the features of any ZvPro, PLUS simultaneous video-over-IP streaming — all with no compromise in performance.

Based on the same architecture as their big brothers (HDbridge 2000 Series encoder/modulators), ZvPro models pack powerful features into a small space. At only 1RU high and shelf or rack mountable, it takes just one ZvPro to create a digital TV channel and broadcast it throughout your entire facility.

FEATURES
  • Unencrypted HDMI input
  • Shelf or rack mount - via integral flanges or optional mounting kit
  • Front-Panel Color LCD - for Configuration and Status
  • Web-based management - local or remote setup and monitoring
  • Analog and Digital Audio - internally encoded and broadcast as AC-3 or MPEG1 Layer 2 Audio Encoding (varies by region)
  • Integrated Closed Caption support — required for ADA compliance in many applications.
  • High power output - up to 45dBmV
  • Strong retention force power connector
  • Two year warranty
  • Proudly designed in Massachusetts and Built in the USA

    SPECIFICATIONS

    VIDEO INPUT
  • HDMI Video (1 or 2 ports per model): HDMI 1.3 Compliant. Backwards compatible to DVI 1.0 Specifications
  • Closed Caption: EIA/CEA-608 captions accepted over composite video input (-NA versions only)

    AUDIO INPUT
  • Analog Audio Input: 75 Ohm 0 to 0.7v at Line-level output. Stereo input on industry standard 3.5mm pigtail connector
  • Digital Audio: Digital as element of HDMI 1.3 port
  • Encoding: Internally encoded into Dolby� Digital AC-3 or MPEG1 Layer 2 (varies by region)

    VIDEO ENCODER
  • Encoder Video Profile: MPEG2 HD Profile 2: ISO13818-2 MP@HL
  • Traffic Shaping: Variable Bit Rate
  • Video Transport Bit Rate: 49.76 Mbps
  • Video Encoding Data Rates: Variable, 10 Mbs - 24 Mbs per channel
  • Average Encoding Data Rate: 18 Mbs per channel
  • Encoding Latency: Programmable 100 msec to 400 msec
  • Color Profile: 4:2:0
  • GOP Size: 24
  • Video, Audio PID: Programmable
  • Program Information: Programmable

    AUDIO ENCODER
  • Encoder Audio Profile: ATSC A/52, Dolby(r) Digital (AC-3) or Mpeg 2 layer 1 (varies by region)

    MODULATOR / UPCONVERTER
  • Modulation Types QAM 256 (ITU-T J83 Annex B) Interleaving modes: (64,2) only OR DVB-C, QAM 256 (ITU-T J83 Annex A) (varies by region)
  • Cable Standard HRC, IRC or STD or User defined (varies by region)
  • Frequency Range: Frequency Agile from 54 to 864MHz
    - 2 kHz resolution
    - +/- 30 ppm accuracy
    - +/- 35 ppm stability
  • Output Power: +45 dBmV typical
  • Output Level Adjust: 25 - 45 dBmV in 1dBmV steps
  • MER: 38 dB typical
  • I/Q Amplitude Imbalance: < 1% typical
  • Spectral Tilt: <= 1dB over 6MHz typical

    CONTROL / SETUP
  • Network interface:
    10/100 mb Ethernet via RJ45 connection
    IP address via DHCP or set by user
    HTML/Javascript served web interface for easy configuration
    Telnet connection for CLI scripting
    Easy firmware updates
    All settings saved in NV storage
  • Front Panel Color Display: Quickly obtain status at a glance

    GENERAL
  • Power: 100-240VAC 50/60Hz, 36W max rated. 18W Typical consumption. IEC 60320-C14
  • Cooling: Internal cooling fan, Front Inlet, Rear Exhaust
  • Mounting: Shelf mount flange or rack ears (ordered separately) 1RU high
  • Enclosure Type: Metal
  • Enclosure Dimensions: 8" x 10" x 1.75" = 20.32cm x 25.4cm x 4.445cm
  • System Weight: 3.1 lb (1.4 kg)
  • Temperature/Humidity: Operating +32F to +113F (0C to +45C) / 10% to 80%, non-condensing
  • Vibration: NSTA 1A in carton
  • MTBF: 45,000 hours
  • Compliance: FCC Class A, IEC60065, EN61000 (see manual for specifics), CE, RoHS
  • Part number: ZvPro 820-NA, ZvPro 810-NA, ZvPro 820-EU, ZvPro 810-EU
  • Model name : ZvPro 820, ZvPro 810
  • Warranty: 2 years
