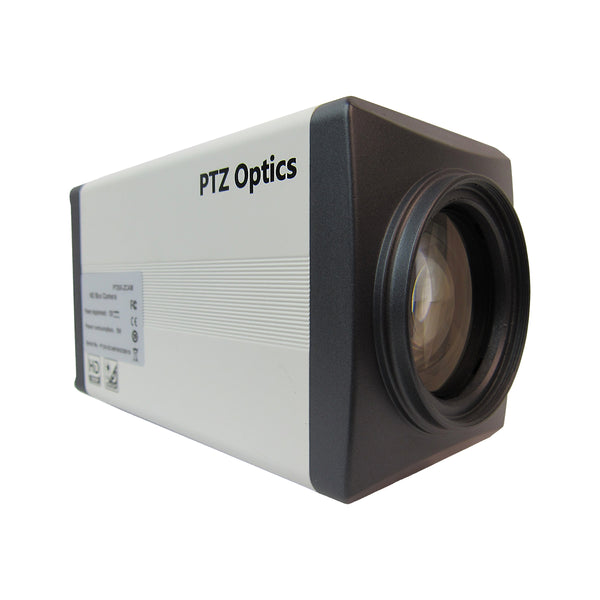

The PTZ Optics ZCam-20X is a 1080p box camera with 20X optical zoom for capturing HD video even at a distance. With support for 3G-SDI & IP Streaming, this camera is ideal for broadcasting high definition video signals for broadcast or video conferencing applications up to 1080p/60 resolution.
FEATURESPanasonic 1/2.7 inch HD CMOS Sensor
3G-SDI High Definition Video Output
H.264, H.265 & MJPEG IP streaming output (dual stream)
AAC Audio Encoding over IP
High performance in low illumination situations
Full 1920x1080p HD Resolutions up to 60 frames per second
2D and 3D noise reduction with our latest low noise CMOS sensor
Wide Dynamic Range
Menu controls on back of camera
RS485 and IP remote camera control
60.7° field of view
Std 1/4-20 female thread for camera mounting (bottom)
SPECIFICATIONS
Power Supply: 12W
Input Voltage: 12V DC (10.8 – 13.0V DC)

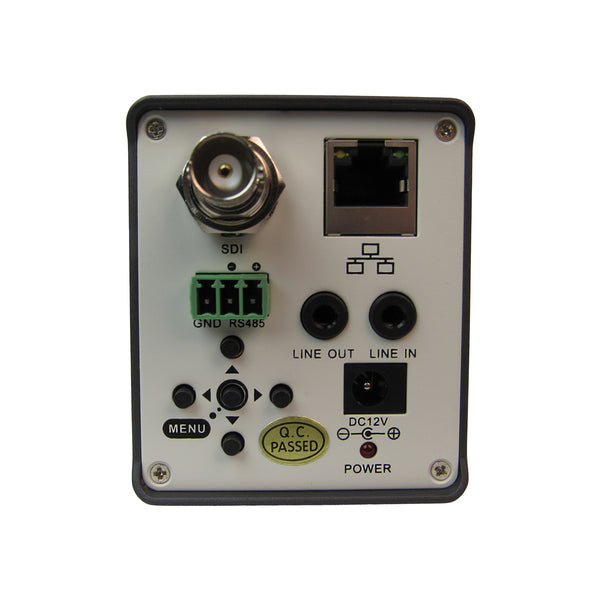

Video Output Interface: 3G-SDI, RJ45 IP Network
Communication Interface: RS485 VISCA, Pelco-D, Pelco-P
Power Supply Interface: JEITA type Power Adapter (DC IN 12V)
Dimensions: 2.4" x 5.7" x 3.0"
Weight: 1.4 lbs.
