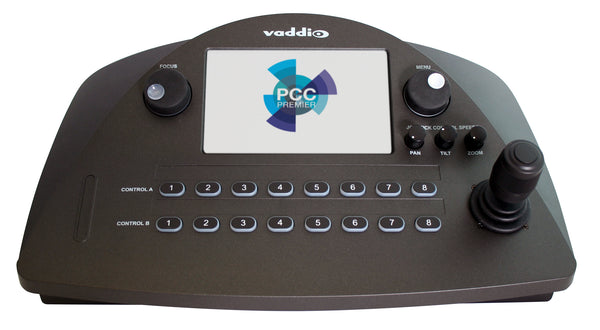

This new controller comes equipped with many precision controls for the most demanding camera operation environments. The PCC Premier has a full color touchscreen interface for easy-to-find camera functions, pan, tilt and zoom speed control knobs, illuminated push buttons for camera selection, large focus knob for fine control with auto/manual toggle and a three-axis Hall-effect joystick for smooth precise camera movements. All of these controls are browser based and available through an embedded web server for control anywhere!
This broadcast-quality joystick controller comes with full preset store and recall, CCU functionality, and IP management for seamless control of any Vaddio RoboSHOT or ClearSHOT cameras anywhere in the world. Whether you are creating a remote studio or state-of-the-art broadcast system, the PCC Premier is your solution to ultimate camera control.
FEATURESControl up to 16 PTZ cameras at a time
7 in. touchscreen interface for full camera image controls
Integrated web interface for administrative access anywhere
PoE+
Three-axis Hall effect joystick
Precision controls for demanding camera operation environments
SPECIFICATIONS
CAMERA MANAGEMENT AND VIDEO OUTPUT
Control via RS-232 Up to 8 cameras
Control via IP network Up to 80 cameras 10 address book groups
Image Control Parameters Iris, Iris Gain
Backlight compensation
Red Gain, Blue Gain
Detail, Chroma, Gamma
Auto White Balance/One-Push White Balance
HARDWARE
System I/O 8 RS-232 camera control ports on RJ-45 connectors
Gigabit Ethernet port with PoE+ support
HDMI output
Control console 7†capacitive touch panel display – Camera presets and administrative menu
Illuminated rotary knobs – Focus (control, auto/manual) and Menu (display panel navigation)
Rotary knobs – Pan, tilt, and zoom speed
Illuminated pushbuttons – Group A and Group B camera selection
3-axis Hall effect joystick, single-button – Pan, tilt, and zoom
POWER, PHYSICAL AND ENVIRONMENTAL
Power Requirements 24 VDC, 2.08 Amp
Power Consumption <25 W
Height 5.125 in. (12.6 cm)
Width 17 in. (43.2 cm)
Depth 11 in. (27.9 cm)
Weight 7.0 lb (3.18 kg)
Operating temperature 0° to +40°C (32° to 104°F)
Operating humidity 20% to 80% RH
Storage temperature -5° to +60° C (23° to 140°F)
Storage humidity 20% to 80% RH
