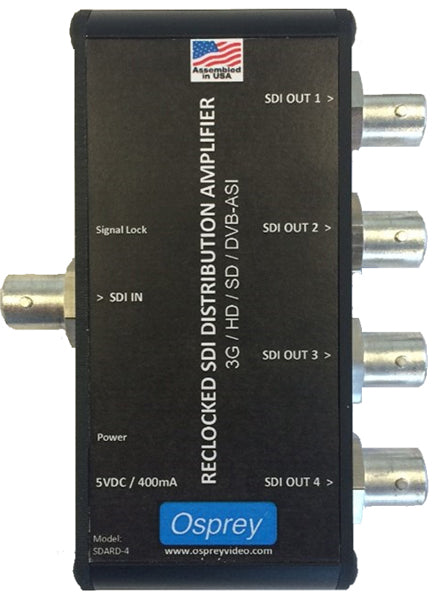

The Osprey signal reclocking SDI distribution amplifier with automatic input detection will accept any single link SDI input up to 3G and passes it directly to four outputs while preserving ancillary data and embedded audio. The amplifier has automatic cable equalization to lessedn attenuation over longer runs. Powered by USB via a locking connector, the SDARD-4 is perfect for streaming workflows.
Standards Compliance
SMPTE 259M, SMPTE 292, SMPTE 344M, SMPTE 424M Video Inputs 1x 3G/HD/SD SDI, DVI-ASI, (BNC) w/embedded audio Outputs 4x 3G/HD/SD SDI, DVB-ASI, ((BNC) w/embedded audio Reclocking Yes Cable Equalization (Belden 1694A) 100m at 3G, 200m at HD, 400m at SD Dimensions 3.74"L x .87"H x 2.75"W Power Connector Locking Mini B USB Power +5 VDC @ ~2W May be powered by USB charger, PC or portable battery pack (not included) Warranty 1 year limited hardware warranty In the Box Reclocking video distribution amplifier Mounting brackets Locking USB cable
