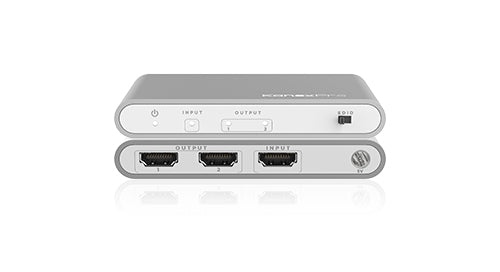

The KanexPro SP-HD20-1X24K is an one input, two output HDMI Distribution Amplifier engineered to split 4K quality videos or high res images from one source to two 4K displays with resolutions up to 4K@60Hz and HDCP2.2 specifications. Built-in EDID management allows optimal resolution to be selected and properly outputted to avoid response time and delays.
The conforming outputs also have the ability of buffering and amplifying all the HDMI signals. It can achieve long distance transmission of HDMI signals up to 50 feet (15 meters) or can be combined with our HDBaseTâ„¢ Extenders to route distances up to 330 feet (100 meters).
APPLICATIONS
The 1x2 DA fully conforms to the latest High Speed HDMI specifications with HDCP 2.2. This HDMI splitter is optimized for distributing HDMI video and embedded multi-channel digital audio to multiple 4K display environments such as residential or digital signage markets and computer lab applications.
FEATURESDistribute one 4K HDMI video and audio signals to two displays
4K@60Hz UHD, 1080p & 3D resolutions
4Kx2K @30Hz with 24bit RGB, YCBCR 4:4:4 & YCBCR 4:2:2
4Kx2K @60Hz with 12bit YCBCR 4:2:0
Conforms to High Speed HDMI specifications:
(Deep color, HD lossless audio formats & Lip Sync)
EDID Selector for optimal resolutions
HDCP 2.2 compliant
Built-in Smart EDID Control
Front-panel LED’s for input/ output signal presence
Includes 5V DC external power supply
SPECIFICATIONS
Signal Input/Outputs: Input DDC Signal: 5 Volts p-p (TTL)
Input & Output Signal: High Speed HDMI Spec 2.0a
Input Ports: 1 x HDMI (Female)
Output Port: 2 x HDMI (Female)
Operating Frequency: Vertical Frequency Range: 50/60Hz
Supported Resolutions: 480i ~1080p50/60, 4Kx2K@24/30
4Kx2K@60Hz with 12bit YCBCR 4:2:0
VGA~UXGA
Power Requirements: Power Consumption: 2W
External Power Supply: 5V, 1A DC
Regulatory Approvals: Converter Unit: FCC, Ce, UL
Power Supply: UL, Ce, FCC
Environment Operating Temperature: Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
Dimensions: 2.52†(W) × 6.10†(D) × .67†(H)
Weight: 180g
Package Contents: HDMI 1X2 Splitter
5V, 1A Power Supply
Operation Manual
