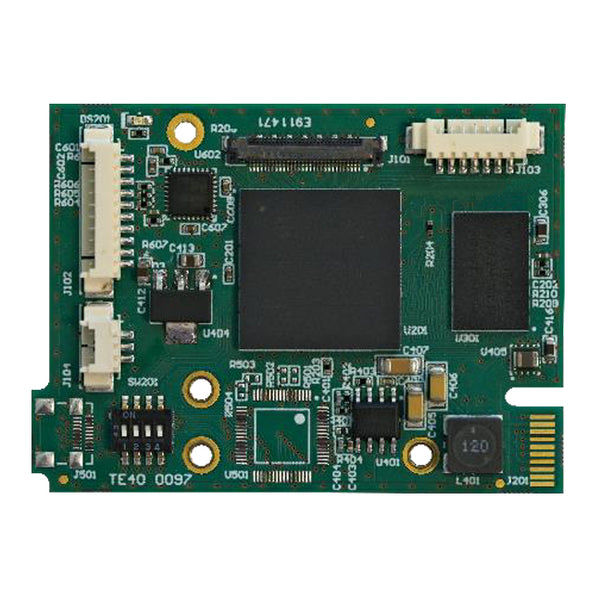

LVDS to ANALOG HD & SD INTERFACE BOARD
YPbPr analog HD video output
CVBS & YC analog SD video output
NTSC / PAL video format
Letter box / Crop analog video conversion
720p50/60, 1080p25/30 (YPbPr)
1080p25/30 to PAL/NTSC (Y/C - CVBS) RS232 / TTL - VISCA serial control
GPIO for zoom, focus, freeze control
8 to 12 VDC Power supply
Size : 55mm x 41.5mm
Highly compact and cost effective, this LVDS to analog HD & SD interface board is the first of its kind. Designed for integration with our block cameras, it is the ideal solution for a wide variety of applications. The board features SD and HD video format and supports up to 1080p25/30 YPbPr analog HD video format and 1080p25/30 to analog SD NTSC/PAL video format. Letter box or Crop conversion from HD 16/9 to SD 4/3 aspect ratio are available.
For serial and GPIO control, the board supports RS232 / TTL levels - VISCA protocol. GPIO are available for zoom, focus and freeze control.
Target applications include drone and video conferencing, UAV'S and ROV'S, inspection, low vision, traffic control, ANPR and medical.
SPECIFICATIONS
Analog HD video output: YPbPr
Analog SD video output: CVBS and Y/C NTSC/PAL format
Analog video conversion: Letter box or Crop format
GPIO control: Zoom, focus, freeze control
Camera control: TTL/RS232 levels - VISCA protocol
Power supply: 8 to 12 VDC, 5 W (including camera)
Operating temperature range: 0°C to 60C
Storage temperature range: -20°C to 60°C
Regulation: EMC FCC part 15, PCB : UL 94 V0
Dimensions: (mm) 55 (H) x 41.5 (W)
