TOSHIBA IK-HD1H

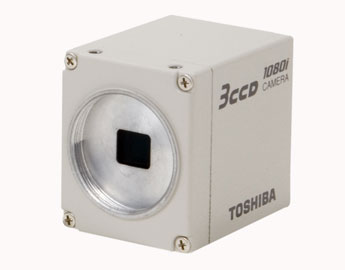

TOSHIBA IK-HD1H Camera Head ONLY for IK-HD1 HD 3CCD Color Camera System

TOSHIBA

ITEM SHIPS DIRECTLY FROM MANUFACTURER. WE WILL NOTIFY YOU IF IT IS NOT AVAILABLE FOR SHIPMENT.
TOSHIBA IK-HD1C is the IK-HD1H Camera Head ONLY. The following Camera Control Units are sold separately: IK-HD1C, IK-HD1D, IK-HD1E.

SPECIFICATIONS:
  • Pick up System 3CCD RGB Micro Prism System
  • Image Sensor 1/3 inch IT-CCD
  • Effective Pixels 1920 x 1080i (Full HD)
  • Video Signal High Definition
  • Scanning System 2:1 Interlace
  • Synchronizing System Internal/External (Automatic Switching)
  • Horizontal Resolution 850 TV Lines
  • Minimum Subject Illumination 13 lux
  • Lens Mount C-Mount(max. 4mm rear projection)
  • Ambient Operating Temperature 0-40° C (32-104° F)
  • Ambient Humidity <90% Relative
  • Weight 65g
  • Dimensions 32.6mm (W) x 38.6mm (H) x 40mm (D)
  • Accessories EXC-T503 (Cable)6m, 10m, 30m cable coming soon
  • Remote Control Interface Serial Data Interface (RS-232C)
