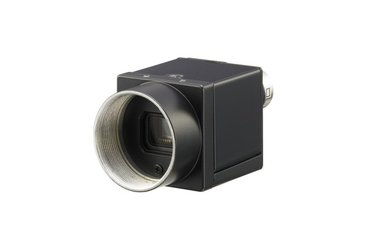

Sony has made it easier than ever for customers to migrate from analog to digital with the introduction of the new monochrome PoCL camera, the XCL-C130. Featuring SXGA resolution of 1,296 x 966 effective pixels, this camera offers exciting new options for a wide array of applications, including Intelligent Transportation Systems, machine vision and sports shooting. The XCL-C130 camera is equipped with several unique features, including Shading Correction, Defect Correction and Temperature Readout.
HIGHLIGHTSShading Correction: Minimizes uneven image intensity caused by lighting conditions. Defect Correction: Automatically minimizes defective pixels directly inside the camera. Temperature readout: Eliminates the need for a separate sensor and simplifies system configuration. Memory Channel: Up to 16 sets of camera parameters can be stored in addition to the factory default settings. Bulk Trigger Modes: Allows the camera to capture up to 16 images in rapid succession using a single hardware or software trigger. Sequential Trigger Mode: Allows the camera to capture a single image using successive setups stored in the memory channel.
CAMERA SPECIFICATIONS Image Device: 1/3-type progressive scan IT CCD Effective Pixels: 1,296 x 966 Cell Size: 3.75µm x 3.75µm Output Image Size: 1,280 x 960 Sensitivity: F5.6 (400 lx, Gain: 0 dB) Lens Mount: C Mount Frame Rate: 31 fps Gain: Auto, Manual: 0 dB to +18 dB Trigger Shutter: 2 s to 1/100,000 s Partial Scan: H: 16 to 1296 V: 2 to 1966 Steps of 2 Binning: 2 x 1, 1 x 2, 2 x 2 Minimum Illumination: 0.5 lx (Iris: F1.4, Gain: +18 dB, Shutter: 1/30 s)
GENERAL SPECIFICATIONS Dimensions (W x H x D): 29 x 29 x 30 mm (1 3/16 x 1 3/16 x 1 3/16 in) Weight: 56 g (2.0 oz) Operating Temperature: -5°C to +45° C (23°F to +140°F) Storage Temperature: -30°C to +60°C (22°F to +140°F) Operating Humidity: 20% to 80% (no condensation) Storage Humidity: 20% to 95% (no condensation) Vibration Resistance: 10 G (20 Hz to 200 Hz) Shock Resistance: 70 G
