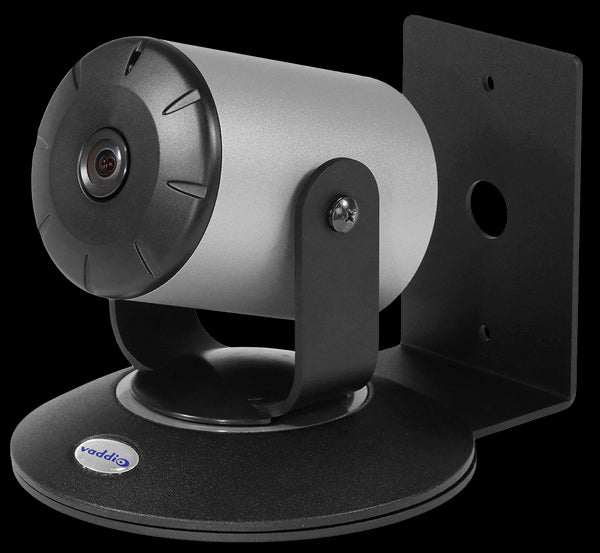

Ideal for small conference rooms and huddle spaces, the WideSHOT SE Series is a high quality fixed camera with 111° wide horizontal field of view. Its fixed lens has a 3x digital zoom mode, and offers manual pan/tilt positioning. The WideSHOT SE offers excellent video quality with resolution up to 1080p/60.
The advanced 1/1.9" CMOS image sensor offers our best low light performance to date, ideal for use in dimly lit auditoriums to capture a wide shot of the audience or stage.

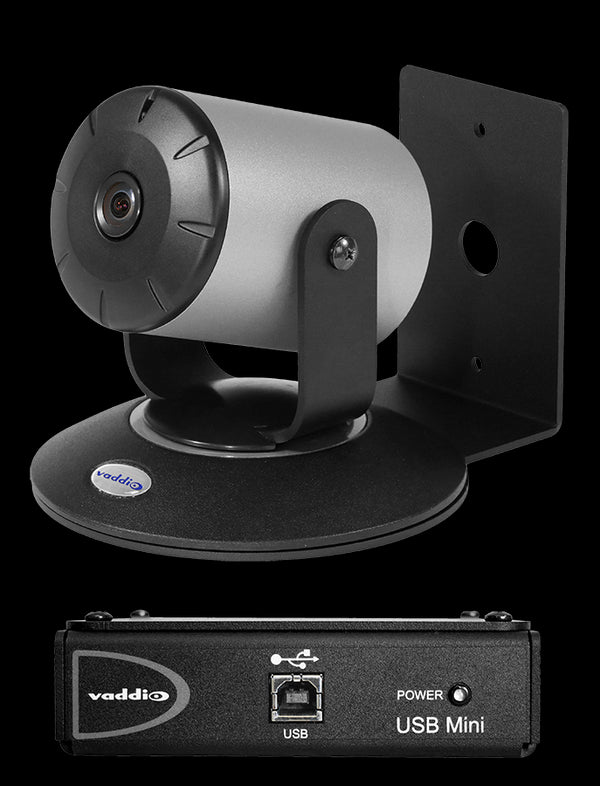

The USB Mini was designed for simple and effective USB 2.0, 720p/30 streaming and capture capabilities for customers who only need USB outputs. The USB Mini uses UVC (Universal Video Class) drivers, so whatever resolution the UC application needs, the USB Mini will auto negotiate.

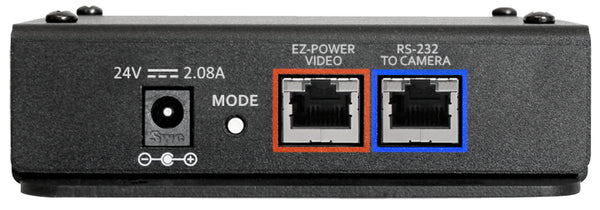

The USB Mini powers the camera, returns HSDS (differential) video with connectivity distances up to 150' using the Vaddio standard two Cat. 5 wiring platform. The USB Mini also offers an easy mounting either on-wall or under-table with an integrated mounting tab.
FEATURESUSB 2.0 Output
Power/Video/Control on two Cat-5’s up to 150’ (45.72m) for ZoomSHOT/WideSHOT series cameras
Power/Video/Control on two Cat-5’s up to 100’ (30.5m) for RoboSHOT, PowerVIEW and ClearVIEW series cameras
WHAT'S IN THE BOX WideSHOT SE camera
Thin Profile Wall Mount (black) with mounting hardware
Vaddio IR Shot Commander Remote
Quick-Connect USB Mini Unit
24V power supply with AC cord set(s)
6' (1.83m) USB 2.0 cable, type A to B
Quick-Start Guide
The advanced 1/1.9" CMOS image sensor offers our best low light performance to date, ideal for use in dimly lit auditoriums to capture a wide shot of the audience or stage.
The USB Mini was designed for simple and effective USB 2.0, 720p/30 streaming and capture capabilities for customers who only need USB outputs. The USB Mini uses UVC (Universal Video Class) drivers, so whatever resolution the UC application needs, the USB Mini will auto negotiate.
The USB Mini powers the camera, returns HSDS (differential) video with connectivity distances up to 150' using the Vaddio standard two Cat. 5 wiring platform. The USB Mini also offers an easy mounting either on-wall or under-table with an integrated mounting tab.
