Integrated 12x Ultra HD Lens, 1/2.3-inch CMOS Sensor
Ultra high quality imagery begins with a precision 12x F1.2-3.5 optical zoom lens (35mm equivalent: 29.6-355mm). JVC's 4K CMOS sensor with 12.4M pixels delivers high sensitivity and excellent performance over a wide range of lighting conditions. Details are crisp and accurate throughout the entire image plane. When shooting in the HD mode, Dynamic Zoom combines optical zoom and pixel mapping to create seamless and lossless 24x zoom. This allows the camera to have a long zoom range while retaining its small form factor. Shooters will also appreciate the convenient ND filter wheel: 0, 1/4th and 1/16th positions.
4K Ultra HD Recording at 150Mbps and Live Output
Working with 4K has never been easier! Insert an SDHC or SDXC (UHS-I Speed class3) memory card and record hours of 4K Ultra HD (3840 x 2160) material. Recordings are made using the Quicktime (.MOV) file format and are compatible with many popular editing systems. Connect a 4K Ultra HD monitor with a single HDMI cable, and view the camera's live 4K signal. You can also play back recorded files directly from the camera. The GY-HM200 also downconverts UHD signals to standard HD for output through the built-in SDI or HDMI connectors.
4:2:2 Full HD recording at 50Mbps
The GY-HM200 records 4:2:2 HD signals up to 60p at 50Mbps making it an ideal camera for general HD production work. 50Mbps files are stored in the Quicktime (.MOV) format for easy editing. Conventional AVCHD (4:2:0) recording is also possible, providing wide editing compatibility in an array of standard HD and SD formats.
Dual SDHC/SDXC Card Slots
Dual SDHC/SDXC card slots make the GY-HM200 a truly versatile camcorder, offering such benefits as simultaneous recording and relay recording. In relay recording mode, you can shoot continuously and seamlessly over multiple cards. When one card is full, the camcorder switches seamlessly and automatically to the other card. And because cards are hot swappable, there is in effect no limit to the continuous shooting time in any mode, even with lower capacity cards.
Web Friendly (Proxy) file formats
Lower resolution H.264 files (480x270p and 960x540p) may be recorded simultaneously with full HD files. These files are significantly smaller than HD files, and thus are very suitable for immediate posting to the web. A file recorded in the 960 x 540 mode is approximately 1/10th the size of a full HD file recorded at 35 Mbps, and therefore takes a fraction of the time to post. The smaller files may be quickly imported to an iPad for easy editing using iMovie or Pinnacle Studio. Transporting video to the web or back to the studio has never been faster.
Advanced IP Network Communication and Streaming
The GY-HM200 features JVC's latest IP communications engine giving you remote control and monitoring of vital camera and lens functions from a tablet, smartphone, or computer anywhere in the world. Live streaming is possible in HD or lower resolutions, depending on available bandwidth. JVC's Advanced Streaming Technology (AST) includes Zixi powered Forward Error Correction with ARQ, delivering high quality streams even under challenging conditions. RTMP protocol makes it easier than ever to deliver your live streams to content delivery networks such as USTREAM and YouTube. And with Version 2.0 (available September 2015) streaming is more reliable than ever with Adaptive Bitrate Control. Just press one button and you're streaming to the world!
FEATURES

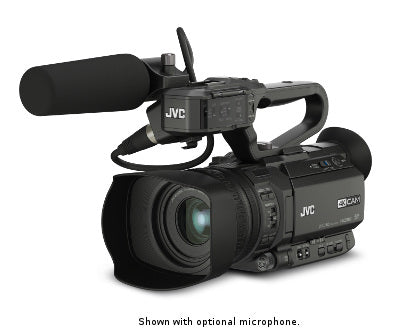

External microphone not included
*Requires appropriate network connection and adapter
**Requires Version 2.0 upgrade available late September 2015
|
GENERAL SPECIFICATIONS |
|
|
Power |
DC 12V (AC adapter), DC 7.4V (Battery) |
|
Power Consumption |
Approx. Approx. 7.9W （with VF in 4K REC mode, default setting）　　　　　　　　　 |
|
Weight |
Approx. 3.53 lb (1.6kg) (including battery) |
|
Dimensions |
149(W) x 191(H) x 307(D)mm　　　　　　　　　　　　　　　 |
|
Operation temperature |
0℃ to 40℃　(32°F to 104°F) |
|
Storage temperature |
-20℃ to 50℃ ( 14°F to 122°F) |
|
Operating humidity |
30% to 80% |
|
Storage humidity |
under 85% |
|
CAMERA |
|
|
Image Sensor |
1/2.3-inch Back Side Illuminated CMOS Total 12.4M pixels |
|
Synchronizing |
Internal synchronization |
|
Stabilizer |
Optical image stabilizer |
|
Shutter speed |
1/6～ 1/10000 |
|
Lens |
F1.2 (wide) to F3.5 (tele) f=4.67mm to 56.04mm 35mm equivalent: 29.6mm to 355mm |
|
Filter diameter |
62mm |
|
Gain |
0, 3, 6, 9, 12, 15, 18,21,24 dB, Lolux(30,36 dB), AGC |
|
ND filter |
none , 1/4, 1/16 |
|
LCD display |
3.5-inch 920 k pixels, 16:9 |
|
Viewfinder |
0.24-inch 1.56 M pixel, 16:9 |
|
VIDEO/AUDIO RECORDING |
|
|
Recording media |
2x SDHC/SDXC memory card (4K:UHS-1 U3, HD:50Mbps Class10, HD:35Mbps Class6, AVCHD/SD Class4) |
|
Video recording |
Video codec: MPEG-4 AVC/H.264 (4K/HD/SD/Proxy) ,AVCHD(HD/SD) |
|
　 |
File format : MOV(H.264), MTS(AVCHD) |
|
4K(H.264) 　 |
NTSC
setting: 3840 x 2160/29.97p, 23.98p (70,150 Mbps) PAL setting: 3840 x 2160/25p |
|
　HD(H.264) 　 　 　 　 |
NTSC setting: YUV422 mode:1920 x1080/59.94p.29.97p,23.98p(50Mbps), XHQ mode: 1920x1080/59.94p,29.97p,23.98p(50Mbps) UHQ mode: 1920x1080/59.94i,29.97p, 23.98p(35Mbps) 1280x720/59.94p(35Mbps) PAL setting: XHQ mode:1920 x 1080/50p(50Mbps) XHQ mode:1920x1080/50p,50i,25p(50Mbps),1920x1080/50i,25p(35Mbps), 1280x720/50p(35Mbps) |
|
AVCHD 　 　 　 　 　 |
NTSC setting: Progressive mode(Max 28Mbps):1920 x 1080/59.94p, HQ mode(24Mbps):1920 x 1080/59.94i, SP mode(17Mbps):1920 x1080/59.94i LP mode(9Mbps):1440 x 1080/59.94i (Web mode), EP mode(5Mbps):1440 x1080/59.94i (Web mode) PAL setting: Progressive mode(Max 28Mbps):1920 x 1080/50p, HQ mode(24Mbps):1920 x 1080/50i, SP mode(17Mbps):1920 x1080/50i LP mode(9Mbps):1440 x 1080/50i (Web mode), EP mode(5Mbps):1440 x1080/50i (Web mode) |
|
　SD(MOV/AVCHD) |
NTSC setting: 720 x 480/59.94i (8 Mpbs) |
|
　Proxy(H.264) |
NTSC setting: HQ mode(3Mbps):960 x 540/29.97p, 23.98p, LP mode(1.2Mbps):480 x 270/29.97p, 23.98p PAL setting: HQ mode(3Mbps):960 x 540/25p, LP mode(1.2Mbps):480 x 270/25p |
|
　 |
|
|
Audio recording |
LPCM 2ch, 48kHz/16-bit(4k/HD/SD MOV)), AC3 2ch(AVCHD), μlow 2ch(Proxy) |
|
LIVE VIDEO STREAMING |
|
|
Protocol |
RTMP, MPEG2-TS/UDP, MPEG2-TS/TCP, RTSP/RTP, ZIXI |
|
Bitrate |
0.2 - 12 Mbps |
|
Resolution |
1920x1080, 1280x720, 720x480, 480x270 |
|
INTERFACE |
|
|
Video output 　 　 |
AV output (φ3.5mm mini jack x1) SDI output (BNC x1) HDMI output x1 |
|
Audio input |
XLR x2 (MIC,+48V/LINE), φ3.5mm mini jack x1 |
|
Audio output |
AV output (φ3.5mm mini jack x1) |
|
Headphone |
φ3.5mm mini jack x1 |
|
Remote |
φ2.5mm mini jack x1 |
|
USB |
HOST x1(Network Connection) ,
DEVICEx1(Mass storage) |
|
Network Function |
Live Video Streaming, FTP, Remote Control |
|
INCLUDED ACCESSORIES |
|
|
Handle unit, Battery(SSL-JVC50) x1, AC Adapter x1 |
|
