The PTC-150W HD PTZ video camera with a 30x optical zoom can be mounted on a wall, ceiling, floor or a tabletop and includes an IR remote control.
The 1920 x 1080 resolution camera features wide dynamic range with backlight compensation. The camera's image mirror and image rotation functions allow you to electronically orient the image to adjust for the position in which the PTZ has been located.
16 programmable position presets including pan, tilt and zoom positions, allow the camera to quickly move between predetermined camera positions using the remote, or an available PTZ controller. For multi-camera shoots, the built-in tally light can identify when it is the active camera. The camera features a built-in IR cut filter for low light shooting. PTC-150W supports real time position reporting by per frame, providing useful information for virtual studio applications.
The camera supports Sony VISCA protocol for PTZ control using RS-422 protocols over the unit's RJ-45 port.
Video SpecificationsImage Pickup Element: 1/2.8†type progressive scan CMOS sensor
Effective Picture Elements: Approx. 2.14 Mega pixels
Resolution: HD / FHD / SD (CVBS only)
Signal System: HDMI & SDI: 1080/59.94p, 1080/59.94i, 1080/29.97p, 720/59.94p, 1080/50p, 1080/50i, 1080/25p, 720/50p
CVBS: 480i, 576i
S/N Ratio: 50 dB
Min. Illumination = Color: 0.4 lx (F1.6, 1/30 sec, 50IRE, Gain: High) ; B/W: 0.03 lx (F1.6, 1/30 sec, 50IRE, Gain: High)
Electric Shutter: 1/50 (1/60), 1/120 (1/100), 1/250, 1/500, 1/1000 sec
Gamma Control: Off / Normal / Standard Mode 1-4
Iris Control: Auto / Manual
Digital Noise Reductions: 0 - 5
On-Screen Display (OSD): English
White Balance: AWB / MWB / One push WB / Outdoor / Indoor / Fluorescent
AGC / Gain Control: Auto / Manual (0 to 39 step)
Max. Gain Limit (9 to 39 step)
Zoom Ratio: 30x Optical Zoom
Mirror: OFF / Horizontal / Vertical / H+V
Camera Title (OSD): ON / OFF
Color Bar: On / Off (Full Bar)
Focus Mode: Auto / Manual
Day & Night (IR): Auto / Color / BW
Pan / Tilt / Zoom Specifications Pan/Tilt Range = Pan: 270° , Tilt: +90° to -20°
Pan/Tilt Speed = Manual: 1~150°/Sec
Swing: 1~150°/Sec
Initialization Time: 30 sec
Coordinate Report: P, T, Z (While Panning , Tilting and Zooming ) by frame
Lens Specifications Lens Type: 30x Optical Zoom
Focal Length: F=4.3 mm (WIDE) to 129 mm (TELE) ; F1.6 to F4.7
Angle of View (Horizontal): Approx. 63.7 degrees (WIDE END) / 2.3 degrees (TELE END)

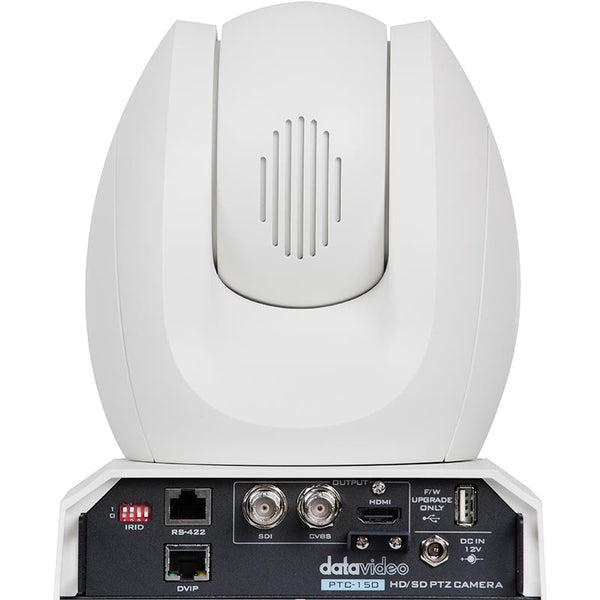

Video Output Video Output: HDMI (V1.3) x 1, HD-SD-SDI x 1, CVBS x 1
Video Format Output: 1 Vp-p / 75 Ohms
Control Protocol: VISCA / DVIP
Remote Control: RS-422 & DVIP by RJ-45 interface
Remote Controller: RMC-180
F/W Update: USB 2.0
IR Control: One IR controller
Additional Specifications Moving Noise while Tilt: <=25dB
Moving Noise while Pan: <=25dB
Operating Temperature: 0°C ~ 50°C
Storage Temperature: - 10°C ~ 60°C
Operating Humidity: 10 % to 80 % (no condensation)
Certifications: CE / FCC Class A
Weight: 2.76 Kg (Camera Device Only)
