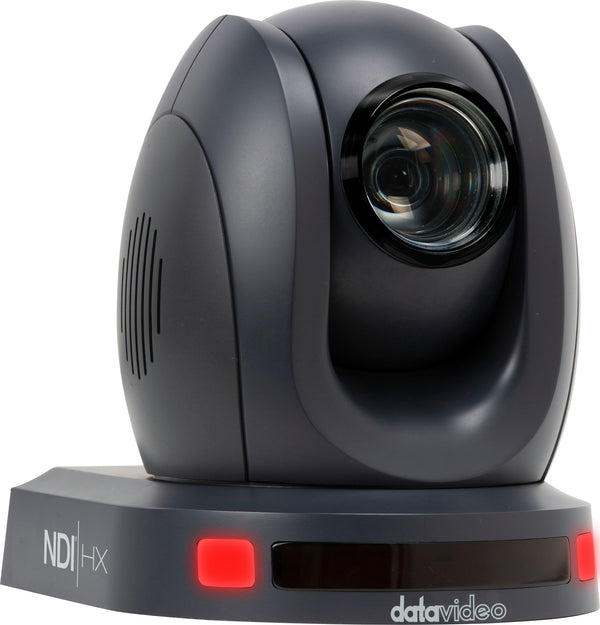

| PTC-140NDI NDI PTZ Camera | |
|---|---|
| Video format | 1080p 60/59.94/50/30/29.97/25 |
| Image Sensor | 1/2.8 inch high quality HD CMOS sensor |
| Effective Pixels (approx.) | 2.07 Mega pixels |
| S/N Ratio | >55dB |
| Min. Illumination | 0.5Lux (F1.8, AGC ON) |
| Electronic Shutter | Auto / Manual |
| Zoom Ratio | 20x Optical Zoom, 10x Digital Zoom |
| Gamma Control | Off / Normal |
| Iris Control | Auto / Manual |
| Digital Noise Reductions | Yes |
| On-Screen Display (OSD) | English, Simplified Chinese |
| White Balance | Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K |
| AGC / Gain Control | Auto / Manual |
| Mirror / Flip Image | Yes |
| Focus Mode | Auto / Manual |
| Panning / Tilting Range | Pan: 340° |
| Panning / Tilting Speed | Pan: 0.1~60°/sec |
| Preset | 255 Positions |
| Focal Length | f=5.2 (wide) to 98 (tele) mm |
| Field of View (Horizontal, Wide) | Approx. 54.7° (WIDE END) / 3.3° (TELE END) |
| Image Compensation | Backlight Compensation |
| Video Output | HDMI x 1 |
| Audio Input | 3.5mm Line in |
| Tally LED | Dual colors (Red, Green) |
| Lens Filter | M52.0 x 0.75 Thread with UV Protection |
| Control Protocol | VISCA/Pelco-D/Pelco-P; Baud Rate:115200/38400/9600/4800/2400bps |
| Remote Control Interface and Transmit Distance | LAN: for IP control (DVIP / NDI®) |
| Video Compression Format | H.264, H.265, Dual stream output |
| Audio Compression Format | AAC/MP3/G.711A Audio compression |
| HD IP Interface | 100M IP port(100BASE-TX); Support DVIP and NDI® |
| Streaming Protocols | TCP/IP, HTTP, RTSP, RTMP, DHCP, Multicast, etc |
| F/W Update | Ethernet |
| IR Control | Yes |
| Camera Control Unit | RMC-180/RMC-300A |
| Tripod Mount | 1/4-20 UNC |
| Optional Accessories | WM-1/ WM-10/WM-11 |
| Color | Dark Blue/White |
| Dimension (LxWxH) | 156 x 184 x 186 mm |
| Weight | 1.6 kg |
| Operating Temp. Range | 0~40 °C |
| Power | DC 12V 12W |
