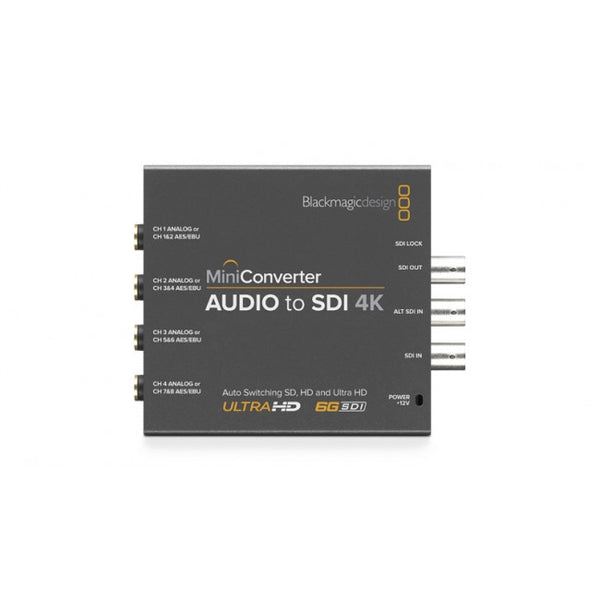

Mini Converter Audio to SDI 4K includes everything you need to embed 4 channels of analog audio or 8 channels of AES/EBU digital audio into any SDI video connection. Now you can embed professional audio from devices such as audio mixers and analog decks into SDI video connections for use with SDI routers and decks or to add extra audio channels to video converters!
CONNECTIONSSDI Video Input
Switchable between SD, HD, 3G and 6G-SDI. SDI Video Output
Automatically matches the SD, HD, 3G and 6G-SDI video input. Analog Audio
4 channels of professional balanced analog audio with standard 1/4 inch jack connections. AES/EBU Digital Audio
8 channels of professional balanced digital with standard 1/4 inch jack connections. SDI Redundant Input
Automatically switches over if main SDI input is lost. Multi Rate Support
Auto detection of 4K, UHD, 2K, HD or SD SDI inputs. Updates and Configuration
USB Reclocking
Yes
STANDARDS SDI Compliance
SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601, SMPTE ST-2036 SDI Video Rates
SDI video connections are switchable between standard definition and high definition. SDI Video Sampling
4:2:2, 4:4:4 SDI Audio Sampling
Television standard sample rate of 48 kHz and 24 bit. SDI Color Precision
4:2:2, 4:4:4 SDI Color Space
YUV, RGB SDI Auto Switching
Automatically selects between SD, HD, 3G and 6G-SDI. SDI Format Support
525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30 and 1080PsF30, 1080p50, 1080p60, 2048x1080p23.98, 2048x1080p24, 2048x1080p25, 2048x1080PsF23.98, 2048x1080PsF24, 2048x1080PsF25, 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p23.98, 4096x2160p24, 4096x2160p25, 4096x2160p29.97, 4096x2160p30.
SOFTWARE Software Control
Mac OS X™ and Windows™ software upgrade via USB. Internal Software Upgrade
Via included updater application. Settings Control
Mini Switches or USB software.
POWER REQUIREMENTS Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point. Power Consumption
8.40 Watts Operational Voltage Range
12V - 31V DC
ENVIRONMENTAL SPECIFICATIONS Operating temperature
0° to 40° C (32° to 104° F) Storage temperature
-20° to 60° C (-4° to 113° F) Relative Humidity
0% to 90% non-condensing
WHAT'S INCLUDED Mini Converter Audio to SDI 4K 12V universal power supply with international socket adapters
WARRANTY 3 Year Limited Manufacturer's Warranty.
